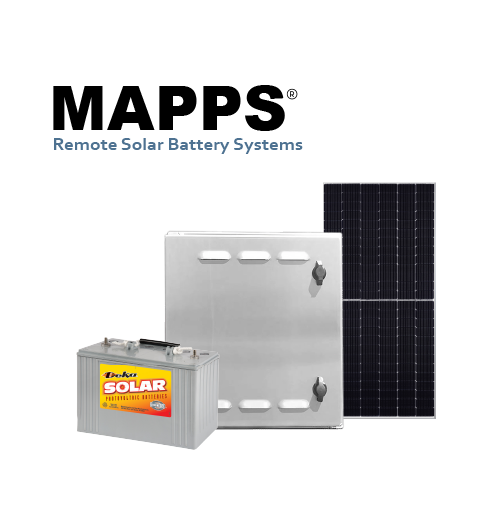

SES MAPPS Off-Grid Solar Panel System

Model Number MAPPS-50-108-12
Nominal System Voltage 12 VDC
Solar PV Module

SES 450J 12 Vdc 50 Watts

Solar Module Certifications UL 1703, Class C Fire Rating
PV Module Mount SPM1-Multi side of pole mount
Battery Type Deka Solar 8G30H Gel Cell
Battery Capacity 12V 108 Ahr at 100 hour discharge rate
Enclosure Model AL-POL-1-G31N
Enclosure Rating NEMA 3R
Charge Controller SunSaver SS-10L-12
Controller Certifications ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01
MAPPS System Weight w/ Batteries 118.2 lbs.
Origin USA
List Price $1,930.66
UL Listed C US
Optional UL Listing Available

wireless off-grid solar system
Pole Mounted Solar Systems

Skip to the beginning of the images gallery

50 Watt 12VDC 108Ahr Pole-Mounted Solar Panel System

In stock
SKU
MAPPS-50-108-12
remote off-grid battery enclosure solar system
remote off-grid solar panel systems
MAPPS off-grid enclosure solar system logo

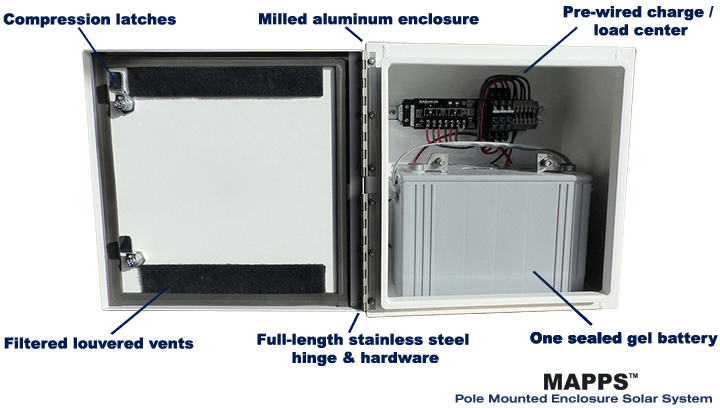

Off-Grid Battery Enclosure Solar Systems

50 Watt 12VDC 108Ahr Pole-Mounted Solar Panel System

one solar panel system
Enclosure solar system designed for long life in harsh weather climates.

Rugged Weatherproof Off-Grid Solar System

This highly reliable, durable, and rugged one-battery system is designed to require minimal maintenance with a 20 year design life (with battery replacements approximately every five to seven years). Our systems are assembled and tested following strict QA/QC procedures, and are designed to IEEE Standard 1562: Guide for Array and Battery Sizing in Stand-Alone Photovoltaic (PV) Systems.

MAPPS enclosure off-grid solar systems include components with the highest quality standards and qualify for Made in USA, Buy America and ARRA. MAPPS systems are also available with UL Listing or Class I Div 2 approval.

50W Off-Grid Solar System w/ 1 battery

50W solar panel
50W Solar Panel w/ mount
Deka Solar 8G30H gel battery
Sealed 108Ahr 12V Gel Cell Battery
charge controller Charge control load center with pre-cut color coded wiring harness included.
lock for battery box
enclosure box lockable latch
The compression latch for locking includes a 5/16" and 1/4" shackle.
charge controller options
We can pre-wire many options.

Solar Panel

  • High efficiency crystalline silicon
  • Meets JPL Block V durability criteria
  • Tempered glass and aluminum frame
  • Conduit ready junction box or MC 4 connectors

Gel Cell Sealed Battery

  • Sealed maintenance-free
  • Excellent deep-cycling performance
  • Immobilized electrolyte, non-spillable
  • Transports easily and safely

System Enclosure

  • Mill finish Aluminum construction
  • Powder coated enamel white option
  • Filtered louvered vents
  • Insulation Kit for battery optional
  • Controller mounted on DIN rail with array/battery/load breakers

Balance of System Components

  • Heavy duty aluminum mounting structure
  • Controller with low voltage battery protection
  • Optional 130 and 170 MPH available
  • Color-coded, pre-cut wiring harness
  • Easy-to-follow manual/system schematics

Optional Components

  • DC to DC converters for 12, 24, 48 VDC loads
  • DC to AC inverter for 120 VAC loads
  • Radio shelf for additional load equipment
  • Pre-wired PoE Power over Ethernet injectors
solar contractors on utility transmission tower

MAPPS Remote Off-Grid Solar Power System Applications

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote off-grid solar project.

Solar battery powered examples can include:

  • DC Fail Alarm Relay
  • 5502 AI Module
  • DC/DC Converter
  • LED lighting
  • Pressure measurement
  • VLCP Lamps
  • Roadway signalling
  • Seismic sensing
  • Contact us with your solar powered application today! OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.

    Call toll-free: (877) 297-0014

    Contact us for availability, pricing and freight quote

    Contractor and commercial discounts available

    Specials and multi-pallet/container discounts

    Complete residential and commercial grid-tie Solar kits

    Design assistance, Permit submittals, Schematics

    Details

    MAPPS 50W 108AHr Battery Pole-Mounted Off-Grid Solar System Review

    pole mounted one battery enclosure solar system
    off-grid solar panel system
    Pole-Mounted Off-Grid Solar Systems

    Solar Electric Supply specializes in supplying dealer, contractor, government and industrial accounts worldwide with reliable, cost-effective off-grid solar electric power solutions.

    Pole Mounted Solar Systems  ·  Contractor Discounts Available



    Contact us toll-free: (877) 297-0014 for expert assistance and wholesale prices for the SES MAPPS 50W 12 Volt Off-Grid Solar System with 1 battery.
