Pad-12 Series Enclosure Specifications
| Model | MAPPS-PAD-12 |
| Overall Dimensions | 55" H × 49" W × 25" D |
| Back Panel Dimensions | 12.325" H × 20" W |
| Battery Capacity | 12 batteries (without back panel) |
| Compatible Battery Types | BCI Group 8G4D & 8G8D, & LFP Batteries |
| Weight | 239 lbs |
| Optional UL Listed NEMA Rating | NEMA 3R (standard) |
| Material Options | Mill finish aluminum (standard), Powder coated aluminum (white), Stainless steel (304/316) |
| Door Type | Stainless steel hinged with compression latches |
| Mounting Type | Pad-mounted |
| Applications | MAPPS® Remote Solar Systems, Outdoor UPS, Off-grid systems |

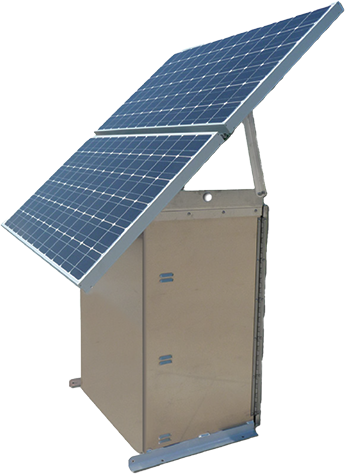

MAPPS® Remote Solar Power Systems

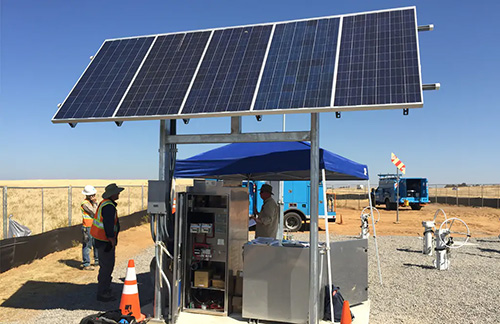

SES MAPPS® Remote Solar Systems deliver reliable off-grid power for critical applications like SCADA monitoring, emergency response, and telecommunications. These complete turnkey packages combine premium solar panels, sealed batteries, and protective enclosures for years of maintenance-free operation.
MAPPS Pad-12 Series Solar Battery Enclosure
SKU MAPPS-PAD-12-BAT-ENC

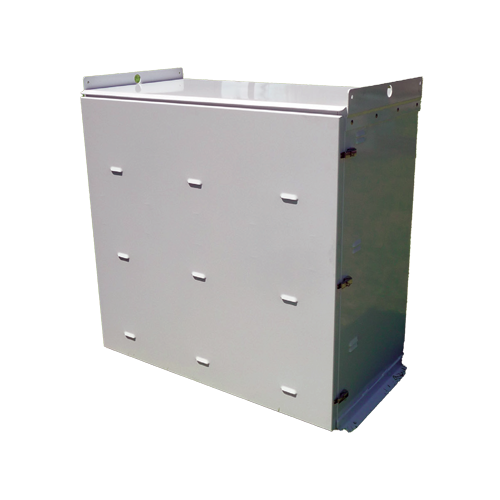

Pad-12 Series Battery Enclosures
The MAPPS® Pad-12 Battery Enclosure is a heavy-duty aluminum outdoor enclosure designed for remote industrial applications including solar energy storage, UPS systems, and temporary/portable power. This versatile enclosure accommodates 12 BCI Group 8G4D or 8G8D batteries & LFP batteries with flexible configuration options for various system requirements.
The enclosure offers protection from the harshest environments with multiple material and finish options including standard mill finish aluminum, powder coated aluminum, and stainless steel variants. The robust construction includes stainless steel hinged doors with compression latches for secure access control and weather protection in demanding outdoor installations.
Pad-12 Series Enclosure Features
- Flexible Battery Configuration: Accommodates 12 BCI Group batteries with modular back panel design for optimal space utilization.
- Optional UL Listed NEMA 3R Protection: Our same design providing weather protection from rain, snow, and corrosive environments is available with a UL Listed NEMA 3R (Standard) rating.
- Material Customization: Choice of mill finish aluminum, powder coated finishes, or stainless steel (304/316) for specific environmental requirements
- Secure Access Design: Stainless steel hinged doors with compression latches provide lockable security for critical battery systems
- Versatile Mounting Options: Pad-mounted design with universal attachment brackets accommodating various pole types and installation configurations
SES Battery Enclosures & Control Cabinets
Solar Electric Supply provides a full range of enclosures for off-grid systems—from single-battery pole/ROHN tower boxes to custom skid-mounted, multi-battery cabinets—built to match diverse solar storage needs. Contact Us Today!
- Wide selection of enclosures and control cabinets
- Customizable to meet specific system requirements
- Single-battery options for pole and ROHN tower installs
- Custom skid-mounted, multi-battery configurations
- Flexible designs to fit system size and site constraints
MAPPS® Pad-12 Series Battery Enclosure Review
The PAD-12 Series provides a comprehensive solution for off-grid solar and UPS enclosure requirements, specifically designed for 8-battery systems with professional-grade protection. The enclosure's 55" height and 49" width dimensions provide generous internal volume while maintaining reasonable footprint requirements for most installations. The cross ventilation system addresses critical thermal management needs in battery storage applications, where temperature control directly impacts performance and lifespan.

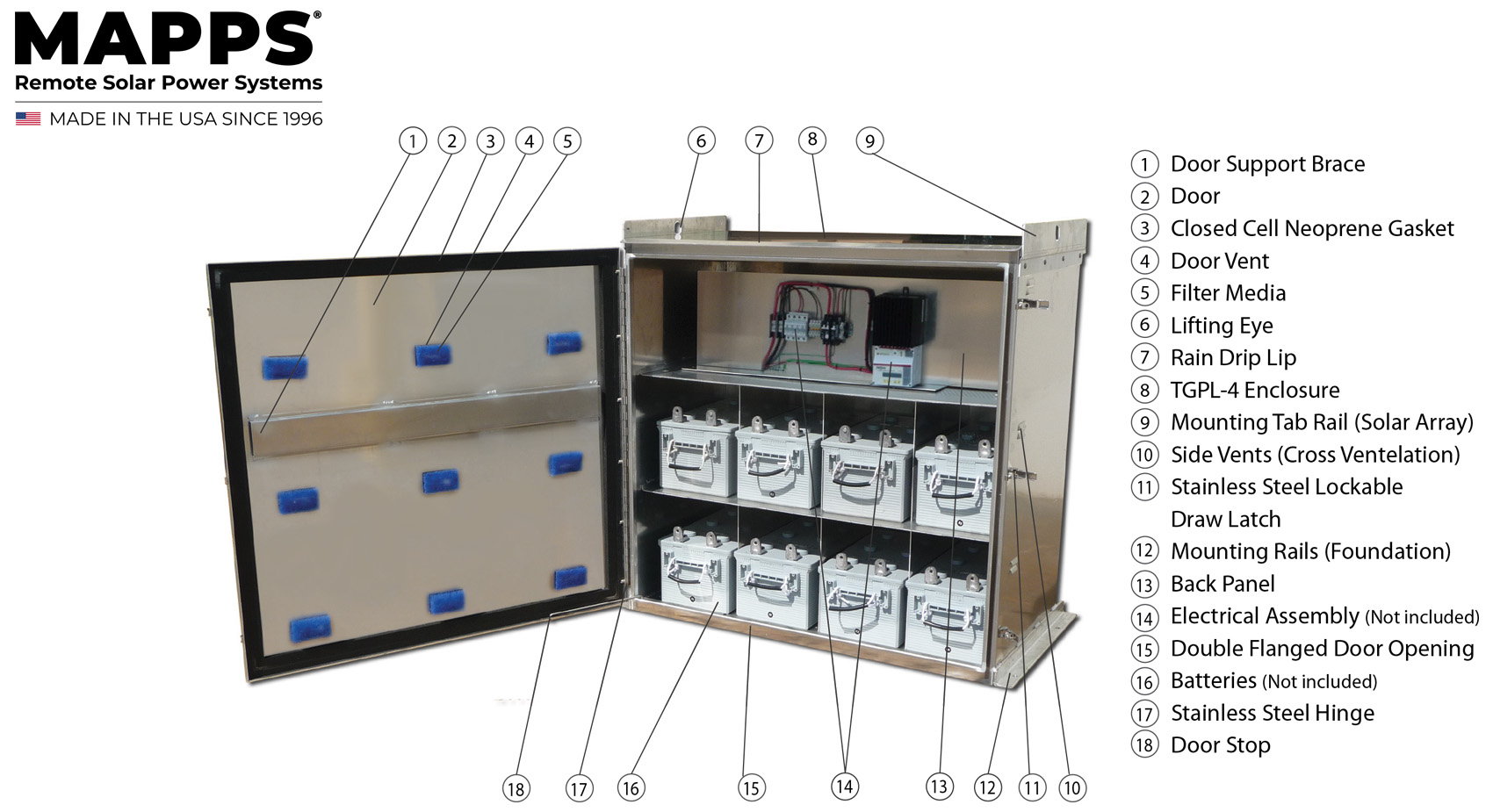

Engineering details include stainless steel hardware throughout high-wear components, closed cell neoprene gaskets for reliable weather sealing, and lifting eyes for safe installation handling. The double flanged door opening design enhances weather protection while providing convenient service access.

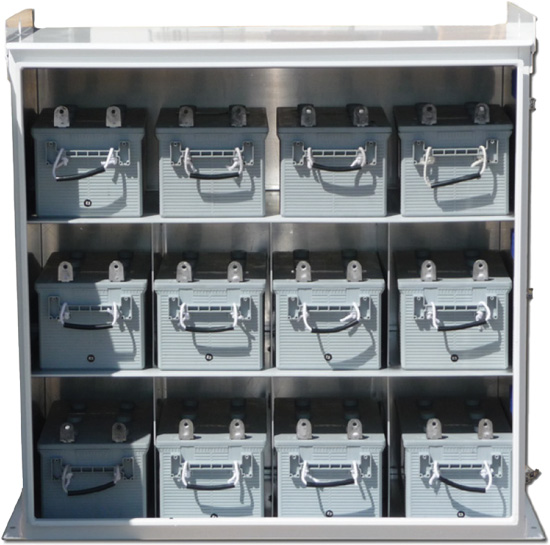

(12)Battery Bank : 8G8D
