Pad-6 Series Enclosure Specifications
| Model | MAPPS-PAD-6 |
| Overall Dimensions | 55" H × 37.625" W × 25" D |
| Back Panel Dimensions | 12.5" H × 23.5" W |
| Battery Capacity | 6 Batteries |
| Compatible Battery Types | BCI Group 8G4D or 8G8D | LFP Batteries |
| Weight | 190 lbs |
| Optional UL Listed NEMA Rating | NEMA 3R (standard) |
| Material Options | Powder coated aluminum (white), Stainless steel (304/316) |
| Door Type | Double flanged with neoprene gasket |
| Mounting Type | Pad-mounted |
| Applications | MAPPS Remote Solar Systems, Outdoor UPS, Off-grid systems |
MAPPS® Remote Solar Power Systems
SES MAPPS® Remote Solar Systems deliver reliable off-grid power for critical applications like SCADA monitoring, emergency response, and telecommunications. These complete turnkey packages combine premium solar panels, sealed batteries, and protective enclosures for years of maintenance-free operation.
MAPPS Pad-6 Series Solar Battery Enclosure
SKU MAPPS-PAD-6-BAT-ENC

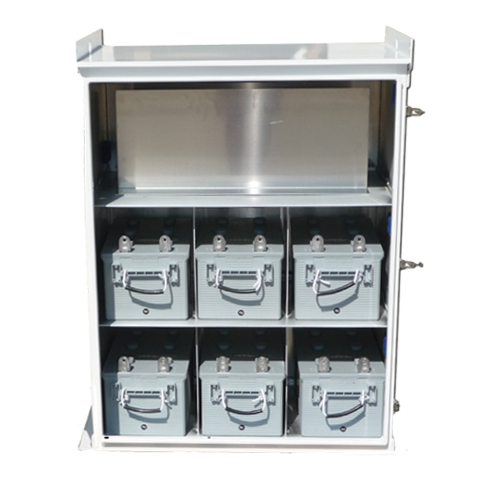

Pad-6 Series Battery Enclosures

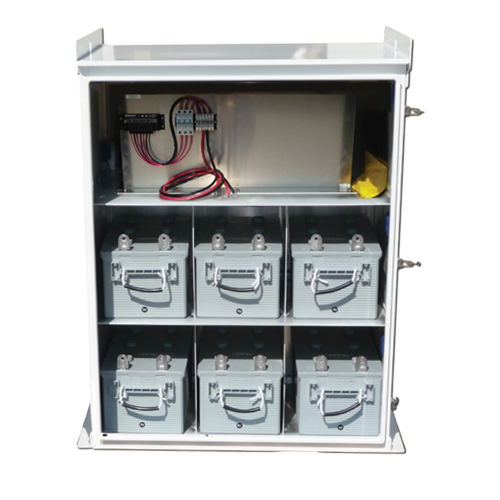

The MAPPS Pad-6 enclosure provides professional-grade protection for off-grid solar control systems and UPS applications, featuring NEMA 3R design standards with optional UL Listed certification. This mid-capacity battery enclosure accommodates BCI Group 8G4D and 8G8D or LFP battery configurations, specifically engineered for 6-battery systems with back panel assembly for organized electrical connections and expandable configurations.
The MAPPS Pad-6 combines robust outdoor protection with optimized space utilization, offering comprehensive ventilation systems and professional mounting solutions for reliable performance in demanding environments.
MAPPS® Pad-6 Series Enclosure Features
- Flexible Battery Configuration: Accommodates 6 BCI Group batteries or LiFePO4 batteries with modular back panel design for optimal space utilization.
- Versatile Mounting Options: Pad-mounted design with universal attachment brackets accommodating various pole types and installation configurations
- Material Customization: Choice of mill finish aluminum, powder coated finishes, or stainless steel (304/316) for specific environmental requirements
- Secure Access Design: Stainless steel hinged doors with compression latches provide lockable security for critical battery systems
- Optional UL Listed NEMA 3R Protection: Our same design providing weather protection from rain, snow, and corrosive environments is available with a UL Listed NEMA 3R (Standard) rating.
SES Battery Enclosures & Control Cabinets
Solar Electric Supply provides a full range of enclosures for off-grid systems—from single-battery pole/ROHN tower boxes to custom skid-mounted, multi-battery cabinets—built to match diverse solar storage needs. Contact Us Today!
- Customizable to meet specific system requirements
- Single-battery options for pole and ROHN tower installs
- Wide selection of enclosures and control cabinets
- Custom skid-mounted, multi-battery configurations
- Flexible designs to fit system size and site constraints
MAPPS® Pad-6 Series Battery Enclosure Review
The MAPPS® Pad-6 represents an optimized solution for medium-capacity off-grid solar and UPS enclosure requirements, specifically engineered for 6-battery systems with professional-grade protection. The 37.625" width dimension provides efficient space utilization while accommodating the increased battery capacity without compromising ventilation effectiveness or service accessibility. This enclosure addresses applications requiring greater energy storage than smaller units while maintaining manageable installation dimensions.

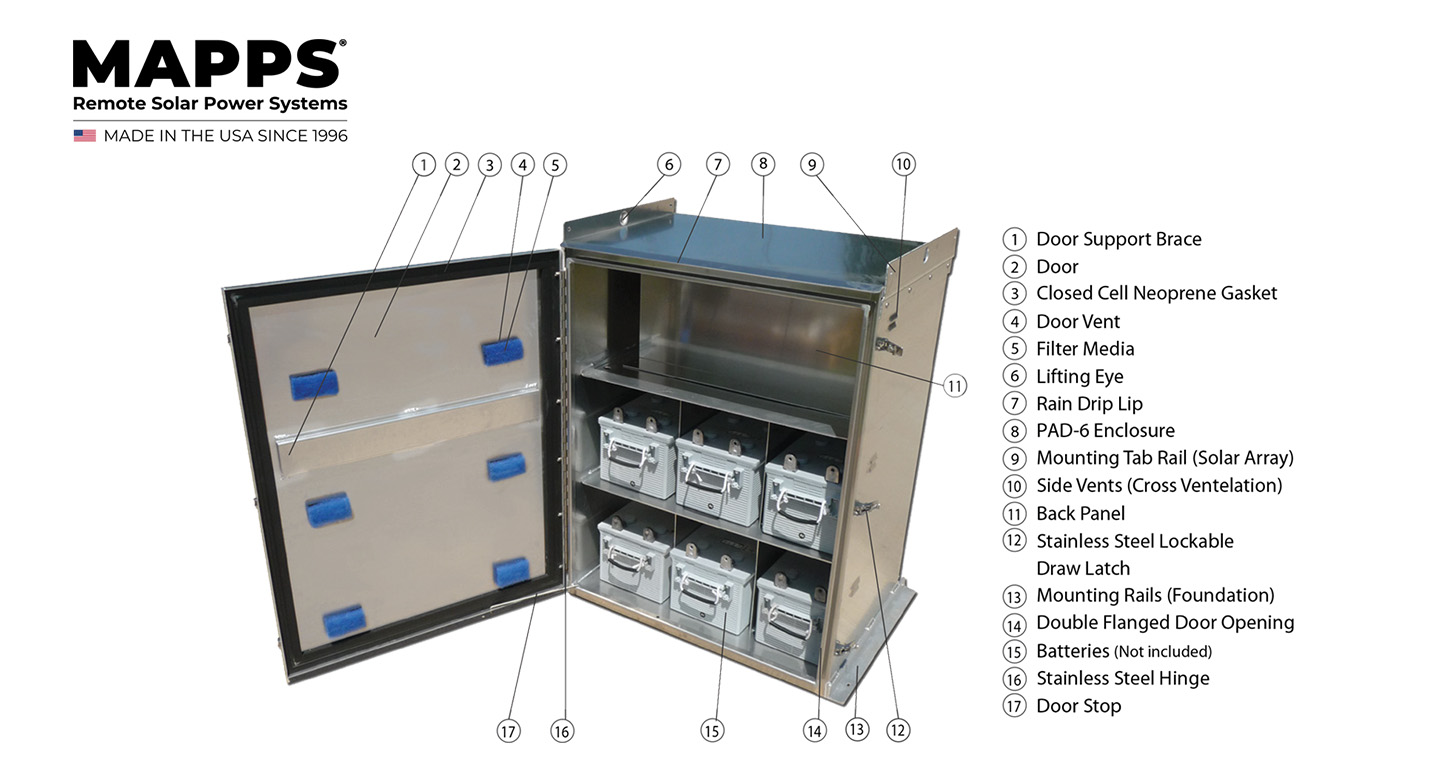

Engineering details include stainless steel hardware throughout high-wear components, closed cell neoprene gaskets for reliable weather sealing, and lifting eyes for safe installation handling at 190 lbs total weight. The double flanged door opening design enhances weather protection while providing convenient service access to the 6-battery configuration. Material options extend from standard mill finished aluminum through powder coated variants to stainless steel 304 and 316 grades, enabling specification for diverse environmental conditions including marine and industrial installations where extended capacity and corrosion resistance are required.
(6) Battery Bank : 8G8D
Different solar panels, PV mounts, storage, & inverter systems available at low wholesale prices
Contact Us Today for sales, quantity discounts and expert reviews for the MAPPS® Pad-6 Series Battery Enclosures
