Pad-8 Series Enclosure Specifications
| Model | MAPPS-PAD-8 |
| Overall Dimensions | 55" H × 49" W × 25" D |
| Back Panel Dimensions | 12.325" H × 20" W |
| Battery Capacity | 8 batteries (with back panel) |
| Compatible Battery Types | BCI Group 8G4D or 8G8D | LFP Batteries |
| Weight | 239 lbs |
| Optional UL Listed NEMA Rating | NEMA 3R (standard) |
| Material Options | Mill finish aluminum (standard), Powder coated aluminum (white), Stainless steel (304/316) |
| Door Type | Stainless steel hinged with compression latches |
| Mounting Type | Pad-mounted |
| Applications | MAPPS Remote Solar Systems, Outdoor UPS, Off-grid systems |
MAPPS® Remote Solar Power Systems
SES MAPPS® Remote Solar Systems deliver reliable off-grid power for critical applications like SCADA monitoring, emergency response, and telecommunications. These complete turnkey packages combine premium solar panels, sealed batteries, and protective enclosures for years of maintenance-free operation.

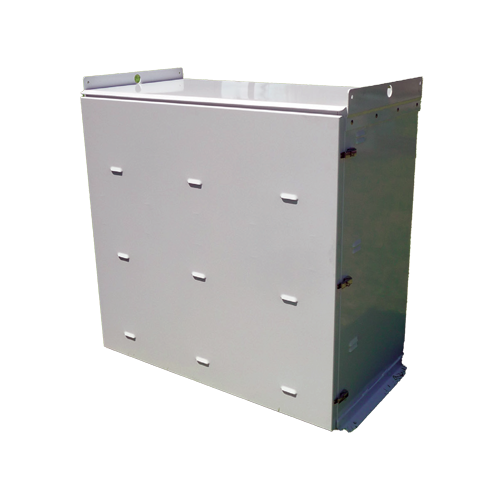

MAPPS Pad-8 Series Solar Battery Enclosure
SKU MAPPS-PAD-8-BAT-ENC
Pad-8 Series Battery Enclosures
The MAPPS® PAD-8 Series enclosure provides professional-grade protection for off-grid solar control systems and UPS applications, featuring NEMA 3R design standards with optional UL Listed certification. This 8-battery capacity enclosure accommodates BCI Group 8G4D and 8G8D or LFP battery configurations, designed specifically for 8-battery systems with optional back panel assembly for organized electrical connections.
The PAD-8 Series combines durable construction with comprehensive ventilation systems and mounting solutions for reliable performance in demanding outdoor environments. Available in multiple material options including mill finished aluminum, powder coated aluminum, and stainless steel variants, this enclosure meets diverse installation requirements while maintaining consistent protection standards.
MAPPS® Pad-8 Series Enclosure Features
- Flexible Battery Configuration: Accommodates 8 BCI Group batteries or LiFePO4 batteries with modular back panel design for optimal space utilization.
- Optional UL Listed NEMA 3R Protection: Our same design providing weather protection from rain, snow, and corrosive environments is available with a UL Listed NEMA 3R (Standard) rating.
- Material Customization: Choice of mill finish aluminum, powder coated finishes, or stainless steel (304/316) for specific environmental requirements
- Versatile Mounting Options: Pad-mounted design with universal attachment brackets accommodating various pole types and installation configurations
- Secure Access Design: Stainless steel hinged doors with compression latches provide lockable security for critical battery systems
SES Battery Enclosures & Control Cabinets
Solar Electric Supply provides a full range of enclosures for off-grid systems—from single-battery pole/ROHN tower boxes to custom skid-mounted, multi-battery cabinets—built to match diverse solar storage needs. Contact Us Today!
- Customizable to meet specific system requirements
- Single-battery options for pole and ROHN tower installs
- Wide selection of enclosures and control cabinets
- Custom skid-mounted, multi-battery configurations
- Flexible designs to fit system size and site constraints
MAPPS® Pad-8 Series Battery Enclosure Review
The MAPPS® PAD-8 Series represents a comprehensive solution for off-grid solar and UPS enclosure requirements, specifically designed for 8-battery systems with professional-grade protection. The enclosure's 55" height and 49" width dimensions provide generous internal volume while maintaining reasonable footprint requirements for most installations. The cross ventilation system addresses critical thermal management needs in battery storage applications, where temperature control directly impacts performance and lifespan.
Engineering details include stainless steel hardware throughout high-wear components, closed cell neoprene gaskets for reliable weather sealing, and lifting eyes for safe installation handling. The double flanged door opening design enhances weather protection while providing convenient service access.

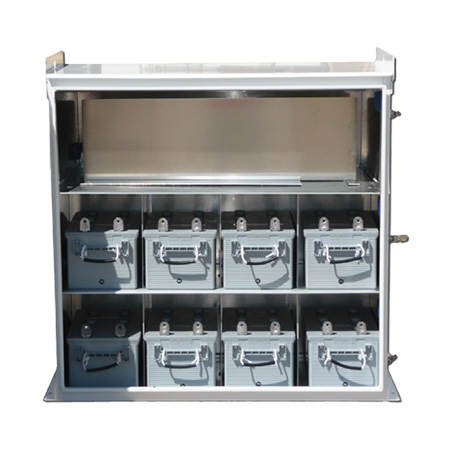

(8)Battery Bank : 8G8D
