PointGuard Energy Controller Specifications

Model #	PG Controller 11.4
Nominal Output Power	3.84 kW – 11.4 kW (field configurable)
Nominal Output Voltage	240/120V Split Phase
Max. Efficiency	98%
MPPT Voltage Range	50–550 V
No. of MPPT Trackers	2-4
Max. Input Current per MPPT	16 A
Supported Battery Modules	PG BatteryPack 5.0 / 8.0
Cooling	Smart Air Cooling
Enclosure Type	NEMA 4X (Outdoor Rated)
EMS Integration	Built-in EMS with seamless switching
Rapid Shutdown	NEC Compliant
Certifications	UL 1741, UL 1741 SB, UL 1741 CRD, IEEE 1547-2018, IEEE1547.1-2020, UL 1998, UL 991, UL 1699B, CP 65, FCC Part 15 Class B

Residential Roof Mount Kit Prices

Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

View Latest Roof Mount System Prices

PointGuard Field Configurable Energy Controller (3.8kW - 11.4kW)

Name: PointGuard Field Configurable Energy Controller (3.8kW - 11.4kW)
SKU: PG-HOME-ENERGY-CONTROLLER

SKU PG-HOME-ENERGY-CONTROLLER

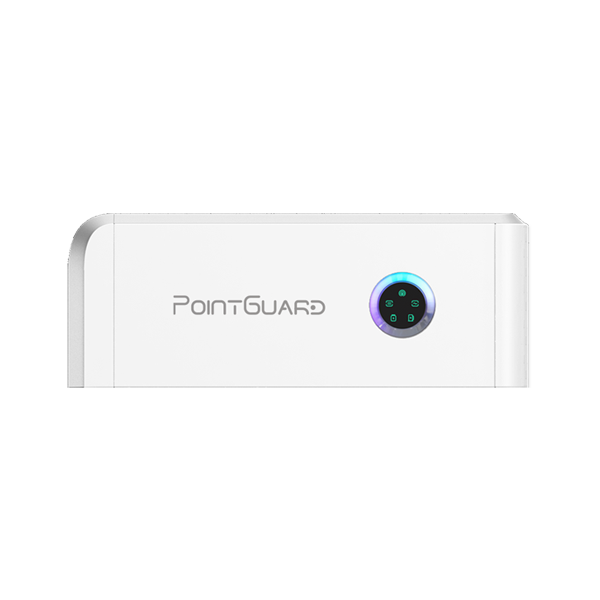

The PointGuard Energy Controller

The PointGuard Energy Controller is the foundation of the PointGuard Home ecosystem — a smart, AI-optimized hybrid inverter with built-in EMS (Energy Management System). It combines advanced power control, flexible inverter configuration, and seamless solar and battery integration into one intelligent device engineered for full-home energy optimization.

Designed for maximum reliability and control, this unit supports up to 200% DC oversizing, offers black start capabilities, and transitions seamlessly between grid-connected and backup modes. With a NEMA 4X enclosure and AFCI protection built-in, it’s suitable for any install location — indoor or outdoor, residential or light commercial.

PointGuard Energy Controller Features

Integrated EMS Intelligence: Built-in Energy Management System enables seamless load control, backup prioritization, and smart switching between power sources.
Up to 4 MPPT Inputs: Supports 2–4 MPPT trackers with 200% PV input oversizing for maximum solar harvest across diverse array layouts.
Black Start Capability: Multi-source black start functionality enables autonomous system recovery during grid outages without requiring a generator.
Comprehensive Protection Suite: Includes AFCI, DC ground-fault protection, and NEC-compliant rapid shutdown for enhanced system safety.
AI Monitoring with myPointGuard: Remotely monitor performance, receive smart diagnostics, and optimize energy use through the myPointGuard App.

PointGuard Home AI Features

PointGuard Home is engineered with advanced AI capabilities to enhance safety, efficiency, and grid interaction. Through the myPointGuard App, users can access real-time system diagnostics, AI-assisted customer support, and predictive energy planning tools. The system continuously learns household energy habits to deliver smarter performance and intelligent grid services over time.

Attachments Details

PointGuard Home Energy Controller Review

Solar Electric Supply is proud to offer the PointGuard Home Energy Controller, a smart and adaptive energy hub built to serve both on-grid and off-grid homes. With flexible battery support and multiple MPPT inputs, this controller is ideal for residential installations that demand reliability and high efficiency. Its integrated EMS and safety features like AFCI and DC ground-fault protection ensure smooth operation and code compliance. Backed by a durable NEMA 4X enclosure, this controller is well-suited for outdoor installations in various climates. SES recommends the PointGuard Controller as a future-ready centerpiece for any advanced residential solar-plus-storage system.
