PointGuard LoadHub Specifications

Model	PG LoadHub
Grid Connection Type	Split Phase
Nominal AC Voltage	120 / 240 V
Max. Grid Current	200 A
AC Output Overvoltage Category	IV
Load-Side Disruption Time	0 ms
Supported PG Controllers	Up to 2
Max. Inverter Power per Connection	11.5 kW
Smart Load Connections	5 (80 A max. per)
Generator Support	2-wire start, 64 A max.
Enclosure Rating	Type 3R (Outdoor Rated)
Cooling	Natural Convection
Installation method	Wall Mounted
Dimensions (W × H × D)	20.5 × 29.5 × 7 in

Residential Roof Mount Kit Prices

Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

View Latest Roof Mount System Prices

PointGuard LoadHub Backup Panel

Name: PointGuard LoadHub Backup Panel
SKU: PG-LOADHUB-BACKUP-PANEL

SKU PG-LOADHUB-BACKUP-PANEL

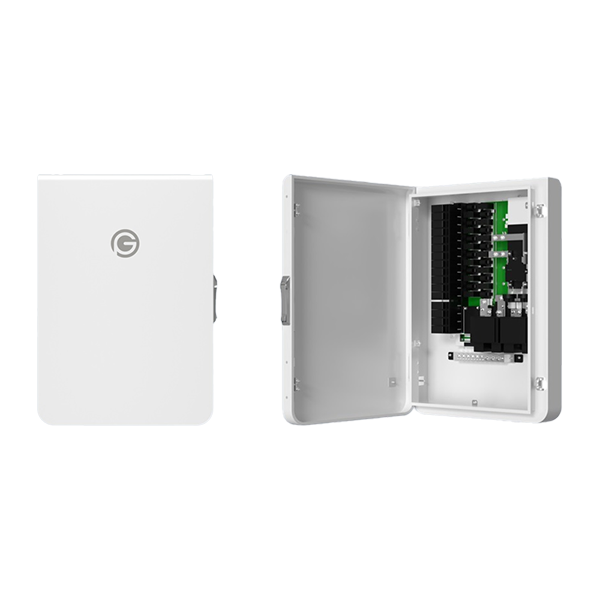

The PointGuard LoadHub

The PointGuard LoadHub is a smart, durable load center designed for seamless integration with the PointGuard Home system. Built to optimize residential energy flow, the LoadHub enables dynamic control over essential and non-essential circuits. . Whether operating in whole-home or partial-home backup mode, the system provides uninterrupted power with 0 ms load-side disruption when paired with the PG Controller and BatteryPack.

Engineered with a full aluminum chassis, the LoadHub is both lighter and stronger than conventional galvanized panels. Its corrosion-resistant enclosure houses up to 6 double-pole controllable loads (or 12 single-pole), supporting major appliances, HVAC systems, and even generator input.

PointGuard LoadHub Features

Smart Load Control: Supports up to 6 double-pole (or 12 single-pole) controllable loads, ideal for high-demand appliances and energy prioritization.
Zero Disruption Switchover: Achieves 0 ms load-side disruption when paired with PointGuard Controller and BatteryPack for uninterrupted power delivery.
Supports Generator Integration: Includes a dedicated dry contact port for generator 2-wire start and safe AC passthrough with reverse flow protection.
Lightweight Aluminum Construction: Over 20 lbs lighter than steel panels, yet corrosion-resistant and durable for long-term use in any climate.
myPointGuard App Integration: Provides full visibility and control over load behavior, energy usage, and backup settings from any mobile device.

PointGuard Home AI Features

PointGuard Home is engineered with advanced AI capabilities to enhance safety, efficiency, and grid interaction. Through the myPointGuard App, users can access real-time system diagnostics, AI-assisted customer support, and predictive energy planning tools. The system continuously learns household energy habits to deliver smarter performance and intelligent grid services over time.

Attachments Details

PointGuard LoadHub Review

With over 25 years of experience in solar distribution, Solar Electric Supply proudly introduces the PointGuard LoadHub — a smart, rugged solution for controlling and protecting your home’s energy flow. Its support for dual inverter inputs, generator integration, and six double-pole smart load ports allows for fully customizable backup configurations. The LoadHub seamlessly pairs with the PointGuard Controller and BatteryPack for zero-disruption switchover and complete system visibility through the myPointGuard App. SES recommends the LoadHub as a powerful and flexible solution for homes seeking high-performance backup energy management.
