PointGuard 25kW V2X Module Specifications

Model	PG V2X 25kW
Max Charging Power	25 kW
Max Discharging Power	25 kW
Output Voltage Range	150-1000 V DC
Max Output Current	80 A
Charging Connector	NACS with 25ft cable
Operating Temperature	-30°C to 60°C (-22°F to 140°F)
Dimensions	700 × 270 × 260 mm (27.56 × 10.63 × 10.24 in)
Weight	40 kg (88 lbs)
Enclosure Rating	NEMA 4X / IP66
Authentication	RFID card / APP / No authentication
System Integration	PointGuard Home Energy System

Residential Roof Mount Kit Prices

Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

View Latest Roof Mount System Prices

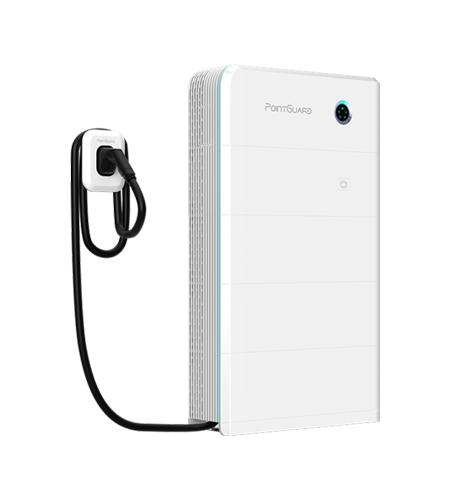

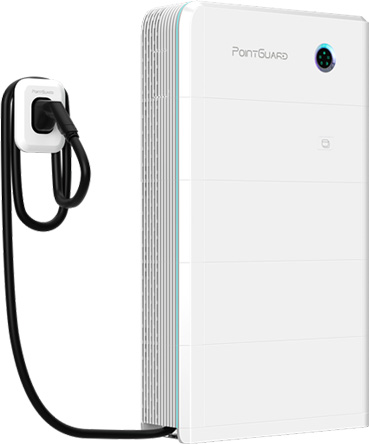

Pointguard V2X Module | 25kW Bi-directional EV DC Charger

Name: Pointguard V2X Module | 25kW Bi-directional EV DC Charger
SKU: PG-V2X-MODULE-25KW

SKU PG-V2X-MODULE-25KW

PointGuard V2X Module 25kW Bi-directional EV DC Charger

The PointGuard V2X Module is a professional-grade 25kW bi-directional EV DC charger designed for integration within the PointGuard Home Energy System. This advanced DC-coupled architecture enables direct solar-to-vehicle charging while supporting both charging and discharging functions up to 25kW. The system features NACS connector compatibility with a 25-foot charging cable, delivering up to 150km of driving range per hour of charging.

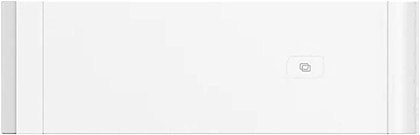

PointGuard V2X Module

The V2X Module incorporates Vehicle-to-Home (V2H) and Vehicle-to-Grid (V2G) capabilities, enabling EVs to function as mobile energy storage units for home backup power and grid services. With NEMA 4X enclosure rating, smart air cooling, and IP66 protection, the system provides maintenance-free operation in diverse environmental conditions. Advanced authentication options include RFID card, mobile app, and no-authentication modes with comprehensive remote diagnostics and OTA update capabilities.

PointGuard 25kW V2X Module Features

Ultra-Fast DC Charging: 25kW charging power delivers up to 150km driving range per hour with direct DC power delivery
Bi-Directional Energy Flow: Vehicle-to-Home and Vehicle-to-Grid capabilities enable EVs as mobile energy storage for backup power and grid services
Solar Direct Charging: DC-coupled architecture allows direct solar-to-vehicle charging with PV surplus mode for maximum green energy utilization
Modular Integration: Quick-connector design enables effortless installation within PointGuard Home Energy System architecture
Smart Connectivity: Remote diagnostics, OTA updates, and multiple authentication methods with comprehensive system monitoring

PointGuard Home Energy System Integration

The PointGuard V2X Module integrates seamlessly within the PointGuard Home Energy System, the world's first AI-optimized 5-in-One residential energy solution. PointGuard Home unifies solar inverter, battery storage, energy management system (EMS), EV DC charging, and intelligent controls into a single expandable platform designed for energy independence.

PointGuard Home Catalog

Attachments Details

PointGuard 25kW V2X Module Technical Review

The PointGuard V2X Module represents advanced EV charging technology with its 25kW bi-directional capability and NACS connector compatibility. The system's DC-coupled architecture eliminates conversion losses by enabling direct solar-to-vehicle power transfer, while multiple charging modes (Fast Charging, PV Surplus, Battery Boost) provide operational flexibility for diverse installation requirements. Professional features include comprehensive protection systems, smart air cooling with filter-free operation, and NEMA 4X enclosure rating for reliable outdoor installations.

The modular design integrates seamlessly with PointGuard Home Energy Systems, enabling sophisticated energy management strategies including peak shaving, load balancing, and emergency backup power. V2H capabilities allow EVs to function as mobile energy storage units with capacity exceeding 100kWh when combined with stationary battery packs, while future V2G functionality will enable grid services and energy arbitrage opportunities once industry standards are fully implemented and supported by vehicle manufacturers.
