Q CELLS Q.PEAK DUO solar panel specifications
Q CELLS Model Number Q.PEAK DUO BLK G10+ 365W
STC Rating 365 Watts
PTC Rating 343.59 Watts
Open Circuit Voltage (Voc) 41.21 Volts
Short Circuit Current (Isc) 11.07 Amps
Frame Color Black
Origin USA
Power Tolerance -0 / +3%
Module Efficiency >20.3%
Area 19.31 ft²
Weight 51.6 lbs.
Length 67.6 in.
Width 41.14 in.
Height 1.26 in.

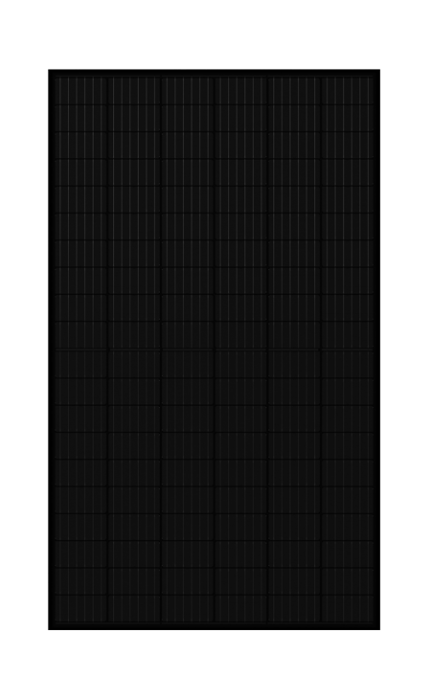

Q Cells Q.PEAK DUO BLK G10+ 365W Solar Panel

SKU q-cell-q.peak-duo-blk-g10-365w
Q Cells Q.Peak

Q Cells Q.PEAK DUO BLK G10+ 365W Solar Panel

Q.PEAK DUO L-G7.2 silver frame with split solar panel cells
Black Frame

The Q CELLS high-performance module Q.PEAK DUO BLK G10+ 365W is the ideal solution for commercial and utility applications thanks to a combination of its innovative cell technology Q.ANTUM and cutting edge cell interconnection. This 1000 V IEC/UL solar module with its 12 busbar cell design ensures superior yields while having a very low LCOE.

Q CELLS enhanced low-light performance and the output of Q CELLS across a wide range of temperatures for Q.PEAK DUO solar panels to rival traditional crystalline technologies.



Q-CELLS DUO BLK-G10+ 365W Features

  • 6x20 monocrystalline Q.ANTUM solar half cells
  • 3.2mm Thermally pre-stressed glass with anti-reflection technology
  • Black Anodised Aluminum
  • Composite film back cover
  • IP67 weatherproof junction boxes w/ bypass diodes
  • Q Cells Q.Antum technology developed in Germany
  • The Q.PEAK DUO BLK G10+ 365W has at least a >20.3% efficiency.


Q CELLS Q.ANTUM DUO Z Technology

This state-of-the-art Q.PEAK DUO BLK G10+ 365W solar module from Q CELLS impresses thanks to innovative Q.ANTUM DUO Z Technology with zero gap cell layout and a module efficiency rating of up to 20.9%.

Q.ANTUM's world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a twelve-busbar design, thus achieving outstanding performance under real conditions - both with low-intensity solar radiation as well as on hot, clear summer days.



Q CELLS Q.PEAK DUO BLK G10+ Benefits

Low Electricity Costs

LOW ELECTRICITY GENERATION COSTS

Q.ANTUM DUO Z combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology for higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 21.2%.

Enduring High Performance

ENDURING HIGH PERFORMANCE

Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™

FRAME FOR VERSATILE MOUNTING OPTIONS

FRAME FOR VERSATILE MOUNTING OPTIONS

High-tech aluminum alloy frame protects from damage, enables use of a wide range of mounting structures and is certified regarding IEC for high snow (5400Pa) and wind loads (2400Pa).

Reliable Investment

A RELIABLE INVESTMENT

Inclusive 25-year product warranty and 25-year linear performance warranty

All Weather Options

INNOVATIVE ALL-WEATHER TECHNOLOGY

Optimal yields, whatever the weather with excellent low-light and temperature behavior.

Q.PEAK DUO BLK-G10+ 365W Solar Panel Certifications

Q Cell Certifications

Quality Controlled PV - TÜV Rheinland; IEC 61215:2016; IEC 61730:2016. This data sheet complies with DIN EN 50380. QCPV Certification ongoing

Q-Cell Q.Peak G10+ Series

Contact us toll-free: (877) 297-0014 for latest low wholesale price & expert Q-Cell Q.PEAK DUO Series assistance.

Q CELLS Q.PEAK DUO BLK G10+ 365W Solar Panel Review

Q CELLS Q.PEAK DUO BLK G10+ Technology

Q Peak G10+ BLK review

Q.PEAK DUO BLK G10+ 365W

The Q-Cells Q.PEAK DUO BLK G10+ 365W module is a high-performance solar panel that incorporates advanced Q.ANTUM Duo technology to deliver exceptional power output and efficiency. The zero gap technology optimizes light absorption and reduces electrical and optical losses, resulting in a module efficiency of up to 20.6%. The half-cell design with multi busbars and wiring interconnection not only enhances performance, but also adds a sleek, modern look to any solar installation.

The half-cell design with multi busbars and wiring interconnection not only enhances performance, but also adds a sleek, modern look to any solar installation. The 25-year product and performance warranty further adds to the reliability of the Q.PEAK DUO BLK G10+ 365 module, ensuring a long-lasting and efficient solar solution.

Q CELLS Q.PEAK DUO BLK G10+ 365W Solar Panel Warranty

· 25-year linear performance guarantee.
· Inclusive 12-year product warranty.
· At least 98 % of nominal power during first year.
· Thereafter max. 0.50 % degradation per year.
· At least 93.50 % of nominal power up to 10 years.
· At least 86.0% % of nominal power up to 30 years.
