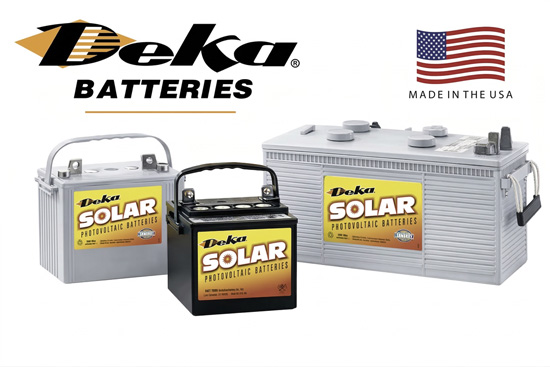

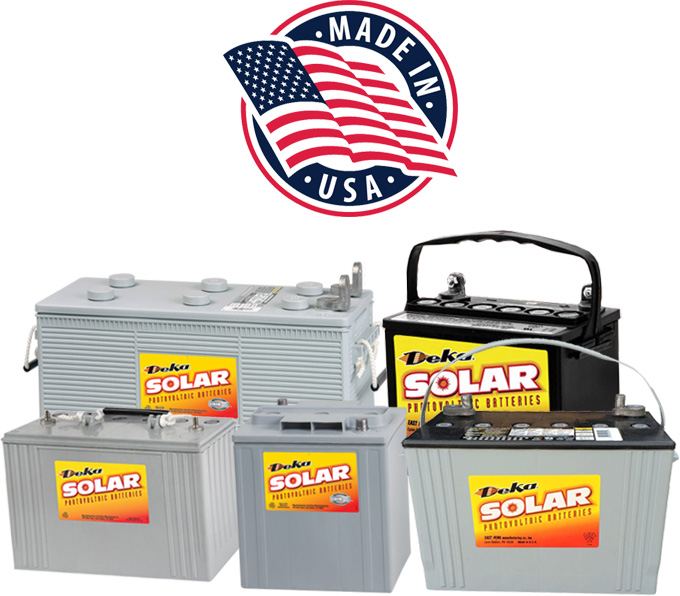

Deka Solar Gel & AGM Batteries

(Used exclusively in our MAPPS^® Pole and Pad mounted Industrial off grid systems for Remote Applications.)

Deka Sealed Gel Cell And AGM Batteries For Off-Grid Solar PV Applications.

The East-Penn Deka Solar line of sealed gel & AGM batteries are field-proven with tens of thousands of solar installations all over the world. Deka Solar batteries are valve-regulated, gel electrolyte or absorbed glass mat batteries designed to offer reliable power for frequent deep cycle solar power applications where minimum maintenance is required.

Time-tested Deka Solar Gel & AGM batteries
that outlast the others.

Deka Solar Gel Cell Batteries (Latest Models)

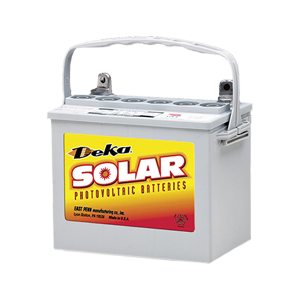

8GU1H-DEKA
(36Ah AHr)

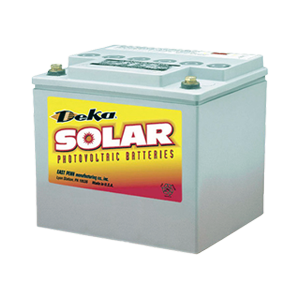

8G40-EI-DEKA
(48Ah AHr)

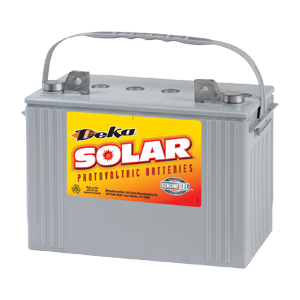

8G27-HFL-DEKA
(88 AHr)

8G27-HUT-DEKA
(88 AHr)

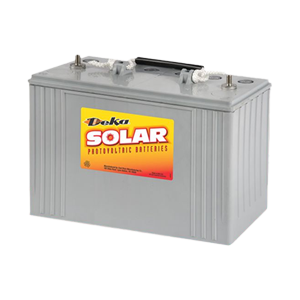

8G31-HST-DEKA
(97.6 AHr)

8G30-HFL-DEKA
(97.6 AHr)

8G4D-HAP-DEKA
(183 AHr)

8G4D-HEI-DEKA
(183 AHr)

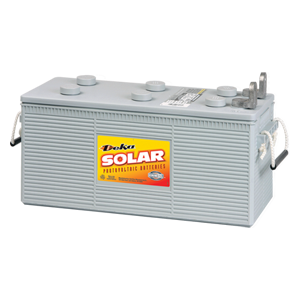

8G4D-HLT-DEKA
(183 AHr)

8G8D-HAP-DEKA
(225 AHr)

8G8D-HEI-DEKA
(225 AHr)

8G8D-HLT-DEKA
(225 AHr)

Get a Custom Quote

Deka Solar Gel Cell Batteries (Older Models)

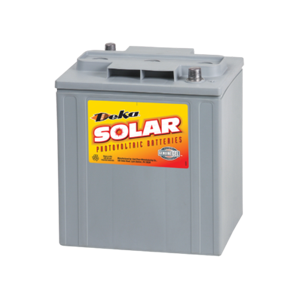

8GU1
36 AHr

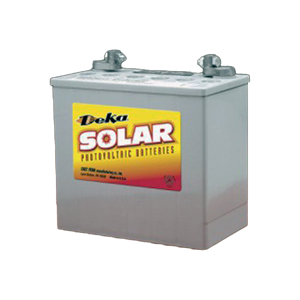

8G22NF
58 AHr

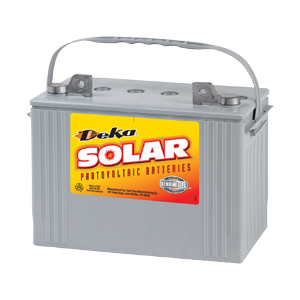

8G27
99 AHr

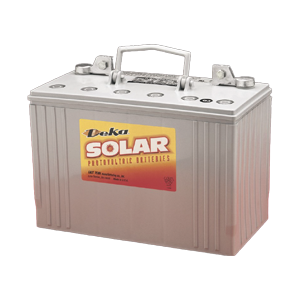

8G30H
108 AHr

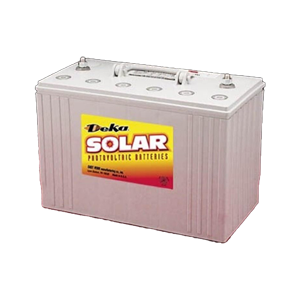

8G31
108 AHr

8G4D
210 AHr

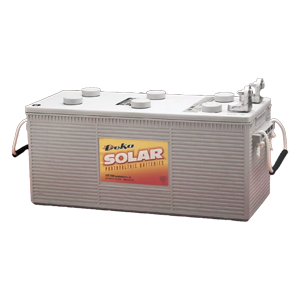

8G8D
265 AHr

Get a Custom Quote

Deka Solar AGM Batteries

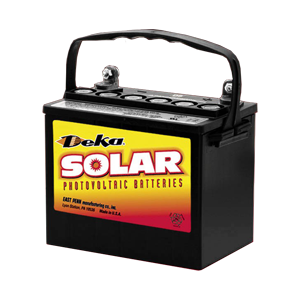

8AU1H
37 AHr

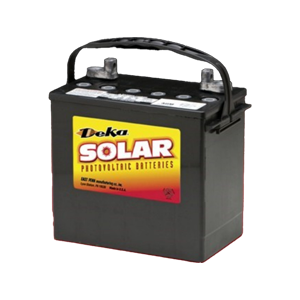

8A22NF
63 AHr

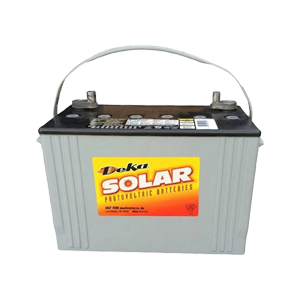

8A27
100 AHr

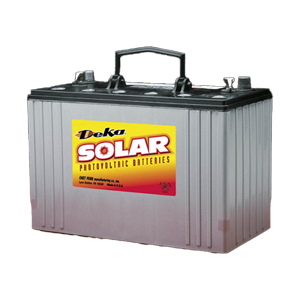

8A31DT
110 AHr

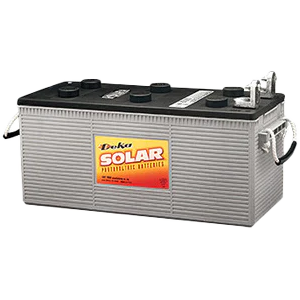

8A4D
210 AHr

8A8D
250 AHr

Get a Custom Quote

Sealed Gel Cell & AGM Battery Applications

Contact us toll-free: (877) 297-0014 for wholesale prices and complete systems using these batteries. OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.

Remote Residential - Communications - Water Pumping - Cathodic Protection - Remote Monitoring - Vaccine Refrigeration - Tower Obstruction Lighting - SCADA - RTU - Wind Power LED Beacons - Wind Generation - DC UPS - and Much More!

Click here for complete solar systems using these batteries.

Deka Solar Gel & AGM Battery Features

Both Deka Solar Gel & AGM batteries are built to the same rigorous standards.

Minimal maintenance, never needs water
Shock absorbent thick wall polypropylene cases
High purity lead calcium-tin alloy grids (patented)
Classified as non-hazardous, non-restricted for surface transport safe for air transportation (IATA A-67)
Non-spillable
Recombination reaction (recombinant battery) prevents escape of hydrogen and oxygen gases normally lost in flooded lead-acid batteries
Great for deep-cycle applications
Deka Solar Batteries may be operated in virtually any position (upside-down is not recommended)

Contact us toll-free: (877) 297-0014 for wholesale prices and complete systems using these batteries. OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.

Deka Solar Gel Cell Battery Specifications (New Models)

GEL BATTERY MODEL #	VOLTS	SHORT CIRCUIT CURRENT	TERMINAL TORQUE MAX. IN/LB (NM)	PERFORMANCE (AH)* TO 1.75 VPC *Ratings after 15 Cycles		WEIGHT	DIMENSIONS - in.
GEL BATTERY MODEL #	VOLTS	SHORT CIRCUIT CURRENT	TERMINAL TORQUE MAX. IN/LB (NM)	20 HR	100 HR	lb (kg)	L	W	H
8GU1H-DEKA	12V	N/A	40 (4.5)	31.6	36.0	23 (10.5)	8.31''	5.18''	7.22''
8G40-EI-DEKA	12V	N/A	60 (6.8)	40.0	48.0	31.5 (14.0)	7.76''	6.62''	6.88''
8G27-HFL-DEKA	12V	2312	40 (4.5)	88.0	99.0	62.0 (28.0)	12.83''	6.56''	9.33''
8G27-HUT-DEKA	12V	2312	50 (5.7)	88.0	99.0	62.0 (28.0)	12.83"	6.56"	9.24"
8G31-HST-DEKA	12V	2802	60 (6.8)	97.6	108	68.5 (31.0)	12.93"	6.74"	9.33"
8G30-HFL-DEKA	12V	2730	40 (4.5)	97.6	108	68.5 (31.0)	12.93''	6.74"	9.75"
8G4D-HAP-DEKA	12V	5530	50 (5.7)	183.0	210.0	127.5 (58.0)	20.77"	8.44"	9.89"
8G4D-HEI-DEKA	12V	5530	100 (11.3)	183.0	210.0	127.5 (58.0)	20.77"	8.44"	8.96"
8G4D-HLT-DEKA	12V	5530	50 (5.7)	183.0	210.0	127.5 (58.0)	20.77"	8.44"	10.85"
8G8D-HAP-DEKA	12V	5915	50 (5.7)	225.0	265.0	157.0 (71.0)	20.44"	10.97"	9.98"
8G8D-HEI-DEKA	12V	5915	100 (11.3)	225.0	265.0	157.0 (71.0)	20.44"	10.97"	9.00"
8G8D-HLT-DEKA	12V	5915	50 (5.7)	225.0	265.0	157.0 (71.0)	20.44"	10.97"	11.25"

Deka Solar Gel Cell Battery Specifications (Older Models)

GEL BATTERY MODEL #	FOOT NOTE	VOLTS	AMPERE HOUR CAPACITY 77°F (25° C)		WEIGHT	DIMENSIONS - in. (mm)
GEL BATTERY MODEL #	FOOT NOTE	VOLTS	20 HR	100 HR	lb (kg)	L	W	H
8GU1	38,39,Y	12	31.6	36.0	23.4 (10.6)	7.75 (197)	5.125 (130)	7.25 (184)
8G22NF	38,39,G	12	51.0	58.0	37 (16.8)	9.375 (238)	5.5 (140)	9.25 (235)
8G27 Group 27	17,38,39,B	12	88.0	99.0	63 (28.6)	12.83 (326)	6.56 (167)	9.25 (235)
8G30H	17,38,39,B	12	97.6	108	70 (31.8)	12.93 (329)	6.75 (171)	9.76 (248)
8G31 Group 31	17,38,39,X	12	97.6	108	70 (31.8)	12.93 (329)	6.75 (171)	9.34 (237)
8G4D	17,38,39,T	12	183	210	127 (57.6)	20.73 (527)	8.44 (214)	10.82 (275)
8G8D	17,38,39,T	12	225	265	157 (71.2)	21.03 (534)	11.00 (279)	10.82 (275)

Deka Solar AGM Battery Specifications

AGM BATTERY TYPE	FOOT NOTE	VOLTS	AMPERE HOUR CAPACITY 77°F (25° C)		WEIGHT	DIMENSIONS - in. (mm)
AGM BATTERY TYPE	FOOT NOTE	VOLTS	20 HR	100 HR	lb (kg)	L	W	H
8AU1H	17,38,39,Y	12	32.0	37.0	23.0 (10)	8.31 (211)	5.18 (132)	7.22 (183)
8A22NF	17,38,39,G	12	55.0	63.0	37.0 (17)	9.72 (247)	5.47 (139)	9.24 (235)
8A27 Group 27	17,38,39,B	12	92.0	100.0	61.5 (28)	12.83 (326)	6.56 (167)	9.30 (236)
8A31DT Group 31	17,38,39,X,SAE	12	105.0	110.0	69.0 (31)	12.94 (329)	6.75 (171)	9.38 (238)
8A4D	17,38,39,T	12	198.0	210.0	135.5 (61)	20.73 (527)	8.44 (214)	10.82 (275)
8A8D	17,38,39,T	12	245.0	250.0	163.0 (74)	21.03 (534)	11.00 (279)	10.82 (275)

ALL RATINGS ARE AFTER 15 CYCLES AND
CONFORM TO B.C.I. SPECIFICATIONS

IMPORTANT CHARGING INSTRUCTIONS: WARRANTY VOID
IF OPENED OR IMPROPERLY CHARGED. Do not install in a
sealed container. Constant under or overcharging will damage
any battery and shorten its life! Use a good constant potential,
voltage-regulated charger. The open circuit voltage of a fully
charged 12-volt battery is 12.8V at 68°F (20°C).

Batteries are manufactured in polypropylene cases and covers.

Footnotes:

17 - Includes handle
38 - "Non-spillable" defined by DOT
(Department of Transportation) definitions
39 - "Non-spillable" defined by ICAO
(International Airline Transport Association)
definitions and IATA (International
Commercial Airline Organization)

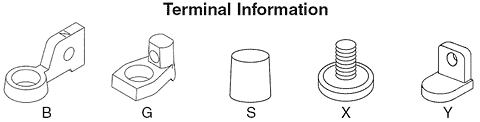

Terminal Codes:

B - Flag Terminal w/ 3/8" diameter hole
G - Flag Terminal w/ 5-16" diameter hole
T - "L" Terminal w/ 3/8" diameter hole
X - 3/8-16 stainless steel threaded post
Y - Small "L" terminal w/ 5/16" diameter hole

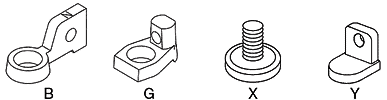

Different Deka Battery Terminals

Deka Solar Sealed Gel & AGM Battery Review

Gel electrolyte and Absorbed Glass Mat batteries are valve regulated lead-acid.

In a gel battery, the electrolyte does not flow like a normal liquid. The electrolyte has the consistency and appearance of petroleum jelly.

In an AGM battery, highly porous microfiber separators completely absorb and trap the electrolyte. Oxygen formed from the positive plates during charging passes horizontally through the separator pores to the negative plates, where it reacts with hydrogen and changes back to water to replenish the electrolyte.

After many reviews, we have found both Gel and AGM perform well in cold and hot climates. In cold climates AGM capacity loss is minimal and will have a slightly higher voltage at lower temperatures. In hot weather climates, gel batteries tend to outlast AGM batteries due to the nature of the Deka gel electrolyte formula. Both are considered "non-spillable". The "acid-starved" condition of Gel and AGM batteries protects the plates during heavy deep-discharges, giving more protection to the plate. Because of this inherent protection, AGM and Gel batteries are better suited for super-deep discharge applications than traditional lead-acid batteries. Deka Solar Batteries fit these conditions.

Contact us for more information.

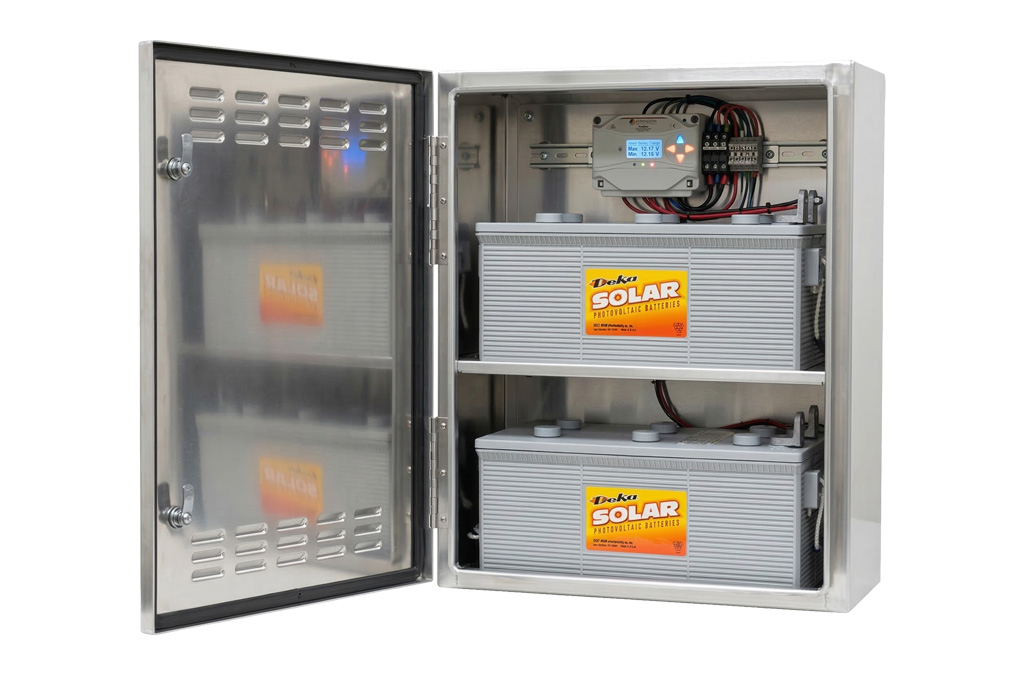

remote off-grid Deka solar battery system
