ProSolar FastJack

ProSolar FastJack

Quick and strong flashable roof stanchion for roof-mounted solar panels.

FastJacks
ProSolar FastJack Flashable Roof Stanchions
ProSolar Made in USA
UL2703

The Prosolar FastJack solar panel roof mount attachment provides a quick and strong installation solution. The patented design places the bolt directly under the stanchion post where it provides the most support. This feature allows standard roof flashings to lay flat on the roof deck.

The patented design of the FastJack® is the most innovative, efficient and cost-effective tool of
it's kind. The FastJack has been laboratory tested to provide 2,359 pounds of strength using
only a single lag bolt (included). The removable post allows flashings to be slipped over the base without damaging surrounding composition shingles. The standard FastJack's larger base allows for stanchion heights of up to 7-1/2", making it desirable for snow load installations.

ProSolar FastJack Benefits

· Removable post makes installation on existing roofs/retrofit quick and easy
· Patented design locates the lag bolt directly under the stanchion providing superior strength values
· Fast & easy to install; saves time and labor costs
· Precision machined from extruded aluminum, there are no welds to corrode or break
· Significantly lighter than steel for installer convenience and reduced shipping costs
· Integrated drill guide insures perfect pilot holes every time; minimizes the possibility of splitting roof rafters
· Base design allows virtually any roof flashing to install flat on the roof deck

ProSolar

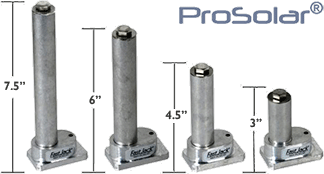

FastJack is Available in Four Sizes:

RoofTrac Standard Rail
RoofTrac Standard Rail
RoofTrac Deep Rail
XD Rail

3" High
Part# FJ-300-18

· For low profile installations using Oatey® flashings (for composition shingle roof-tops)

4.5" High
Part# FJ-450-18

· For installations using standard flashings (for composition & flat rooftops)

6" High
Part# FJ-600-18

· For standard flashings (for flat tile rooftops)

7.5" High
Part# FJ-750-18

· For standard flashings (sized for S-curve tile roofs and/or double flashed installations)



FastJack Installation Review

Standard Flashing
Standard Flashing


Oatey Flashing
Oatey Flashing

ProSolar FastJack Details

· Available in 3”, 4-1/2”, 6”, and 7-1/2” tall sizes
· Single lag bolt design Patent No. 6,360,491
· Includes integrated 3/16” pilot hole drill guide
· Solid aluminum post (1" outer diameter) compatible with standard 3/4" UPC/ NES approved flashings
· Includes lag bolt and hardware
· Sold 18 per box

roof shingle water shedding



flat concrete tile roof with TileTrac

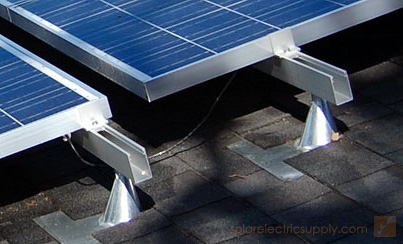

ProSolar FastJack with standard flashing on composition roof.
ProSolar

ProSolar FastJack Accessories

RoofTrac Rails
RoofTrac Rails
Universal Self-Bonding Splice Assembly
Universal Self-Bonding Splice Assembly
Self-Bonding Mid Clamp Assembly
Self-Bonding Mid Clamp Assembly
End Clamp Assembly
End Clamp Assembly
Module Bonding Mid-Clamp Bonding Nut
Module Bonding Mid-Clamp Bonding Nut
End Clamp Bonding Channel Nut
End Clamp Bonding Channel Nut
Ilsco SGB-4 Grounding Lug
Ilsco SGB-4 Grounding Lug
Decorative Front Skirt and Clamp Set
Decorative Front Skirt & Clamp Set
Microinverter/Optimizer Bonding Channel Nut
Microinverter/Optimizer Bonding Channel Nut


Other Accessories

Leveling Shims
2x Rail Support
Malco TurboShear™ Oatey Flashing
