Q CELLS Q.PEAK DUO L-G7.2 solar panel specifications
Q CELLS Model Number Q.PEAK DUO XL-G10.3 480W
STC Rating 480 Watts
PTC Rating 447.1 Watts
Open Circuit Voltage (Voc) 53.39 Volts
Short Circuit Current (Isc) 11.12 Amps
Frame Color Silver
Origin USA
Power Tolerance -0 / +5%
Module Efficiency >20.7%
Area 24.9 ft²
Weight 64.2 lbs.
Length 87.2 in.
Width 41.1
Height 1.38 in.

Q Cells Q.PEAK DUO XL-G10.3 480W BFG Solar Panel

SKU q-cell-q.peak-duo-xl-g10.3-480w
Q Cells Logo

Q.PEAK DUO XL-G10.3 480W Solar Panel

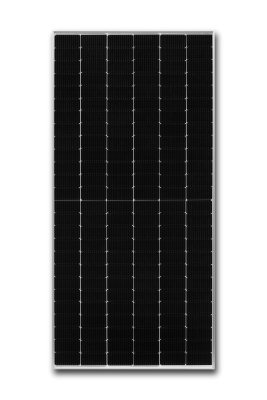

Q.PEAK DUO XL-G10.3 silver frame with split solar panel cells
Anodized aluminum Frame

Take advantage of cutting-edge solar technology with the Q.PEAK DUO XL-G10.3 480W Solar Panel. This 1500 V UL/IEC module utilizes Q.ANTUM DUO-Z technology and superior cell interconnection to provide exceptional yields of up to 490Wp with a low LCOE. The double glass module design and high-tech aluminum alloy frame ensure increased durability and versatile mounting options.

With features such as Anti LID Technology, Anti PID Technology, Hot-Spot Protect, and Traceable Quality Tra.Q™, this solar panel guarantees long-term yield security and high performance in all weather conditions.



Q-CELLS DUO XL-G10.3 480W Features

  • 6 × 26 monocrystalline Q.ANTUM solar half cells
  • 0.08in (2.0mm) thermally pre-stressed glass with anti-reflection technology
  • Anodized aluminum frame
  • 0.08in (2.0mm) semi-tempered glass
  • IP67 weatherproof junction boxes w/ bypass diodes
  • Q Cells Q.Antum technology engineered in Germany
  • The Q.PEAK DUO XL-G10.3 480W has at least a >20.9% efficiency.


Q CELLS Q.ANTUM DUO Z Technology

This state-of-the-art Q.PEAK DUO XL-G10.3 480W solar module from Q CELLS impresses thanks to innovative Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.2 %.



Q CELLS Q.PEAK DUO XL-G10.3 Benefits

BIFACIAL ENERGY YIELD

BIFACIAL ENERGY YIELD GAIN OF UP TO 20%

Bifacial Q.ANTUM solar cells with zero gap cell layout make efficient use of light shining on the module rear-side for radically improved LCOE.

Low Electricity Costs

LOW ELECTRICITY GENERATION COSTS

Q.ANTUM DUO Z combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology for higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 21.2%.

Enduring High Performance

ENDURING HIGH PERFORMANCE

Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™

FRAME FOR VERSATILE MOUNTING OPTIONS

FRAME FOR VERSATILE MOUNTING OPTIONS

High-tech aluminum alloy frame protects from damage, enables use of a wide range of mounting structures and is certified regarding IEC for high snow (5400Pa) and wind loads (2400Pa).

Reliable Investment

A RELIABLE INVESTMENT

Double glass module design enables extended lifetime with 12-year product warranty and improved 30-year performance warranty.

All Weather Options

INNOVATIVE ALL-WEATHER TECHNOLOGY

Optimal yields, whatever the weather with excellent low-light and temperature behavior.



Q-Cell Q.Peak XL-10.3 480W Solar Panel Certifications

Q Cell Certifications

Quality Controlled PV - TÜV Rheinland; UL 61730, CE-compliant, IEC 61215:2016, IEC 61730:2016, U.S. Patent No. 9,893,215 (solar cells)

Q.Peak Duo Series

Contact us toll-free: (877) 297-0014 for latest low wholesale price & expert Q-Cell Q.PEAK DUO XL Series assistance.

Q CELLS Q.PEAK DUO XL-G10.3 480W REVIEW

Q CELLS Q.PEAK DUO XL Technology

Q Peak Q Cells review

Q.PEAK DUO XL-G10.3 480W

The Q.PEAK DUO XL-G10/BFG solar panel is a high-performance module designed for commercial and utility applications. It features innovative Q.ANTUM DUO-Z technology and cutting-edge cell interconnection, resulting in a 1500 V UL/IEC solar module with a power output of up to 490Wp and a low levelized cost of electricity (LCOE). This double glass module design comes with a 12-year product warranty and a 30-year performance warranty for a reliable investment.

The high-tech aluminum alloy frame allows for versatile mounting options and is certified for high snow and wind loads. The Q.ANTUM DUO Z technology leads to higher yields per surface area, lower balance of system costs, higher power classes, and an efficiency rate of up to 21.2%. Bifacial solar cells provide up to 20% bifacial energy yield gain, while Anti LID, Anti PID, Hot-Spot Protect, and Traceable Quality Tra.Q™ technologies ensure long-term high performance. The panel has excellent low-light and temperature behavior, providing optimal yields in all weather conditions.

Q CELLS Q.PEAK DUO XL-G10.3 480W Solar Panel Warranty

· 25-year linear performance guarantee.
· Inclusive 12-year product warranty.
· At least 98 % of nominal power during first year.
· Thereafter max. 0.45 % degradation per year.
· At least 93.95 % of nominal power up to 10 years.
· At least 84.95 % of nominal power up to 30 years.
