SolarWorld Sunmodule Protect SW 270 Mono Solar Panel

Availability: Call For Availability



SolarWorld Protect SW 270 Mono - 270 Watt Monocrystalline Solar Panel


The Sunmodule Protect SW 270 Mono has set new benchmarks when it comes to service life, mechanical durability, degradation behavior and its groundbreaking performance.

This solar panel features a 30-year guarantee and also meets and exceeds all industry standards and certifications.

  • 16.10% Module Efficiency
  • For high-performance commercial or residential grid-tie systems
  • CEC rating of 238.1
  • Monocrystalline cell structure
  • Stable aluminum frame for easy mounting
  • Made in the USA

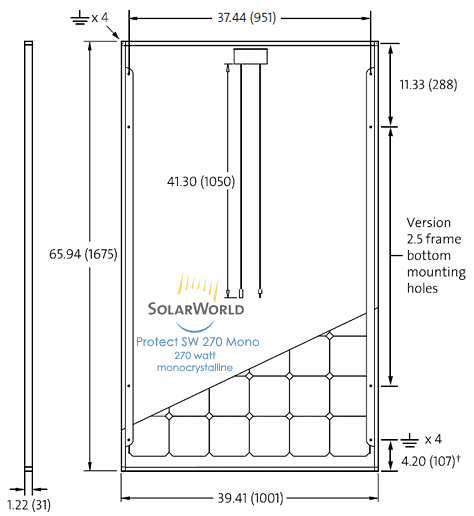

Protect SW 270 Solar Panel Dimensions

Protect SW 270 Dimensions

SolarWorld Sunmodule Protect SW 270 Mono Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In


SolarWorld Sunmodule
Protect SW 270 - 270 Watt Solar Module w/ monocrystalline cell structure
SolarWorld Model Number Protect SW 270 Mono
STC Rating 270.0 Watts
PTC Rating 238.1
Open Circuit Voltage (Voc) 39.2 Volts
Short Circuit Current (Isc) 9.44 Amps
Frame Color Silver
Origin USA
Power Tolerance 0/+5%
Module Efficiency 16.10 %
Area 18.06 ft²
Weight 46.7 lbs.
Length 65.94 in.
Width 39.41 in.
Height 1.22 in.
Solarworld Sunmodule Protect solar system

SolarWorld Sunmodule Protect Mono Solar Systems

Complete residential grid-tie SolarWorld solar systems w/ inverter, mount, MC cables, design schematics and our friendly expert support. click here

Manufacturer Specification Sheets

View FileSolarWorld Sunmodule Protect SW 270 Mono Datasheet    Size: (593.78 KB)
View FileSolarWorld Sunmodule Plus & Protect Installation Manual    Size: (1.26 MB)


Made in the USA
SolarWorld manufactures and produces every cell and assembles every panel their state-of-the-art facility in Hillsboro, Oregon.

SolarWorld Protect SW 270 Mono Solar Panel Review

Positioned between glass on both front and back, solar cells are optimally protected against environmental factors such as water intrusion. Cells also are less susceptible to shear stress, thereby reducing cell breakage. Even with a second pane of glass, Sunmodule Protect solar panels remain lightweight, at about 46 pounds – the same as the Sunmodule Plus glass-film panels. They include the same sturdy aluminum frame and reliable junction box with connectors. Therefore, the Sunmodule Protect is compatible with the same traditional mounting systems as the Sunmodule Plus.

World-class quality
Fully-automated production lines and seamless monitoring of the process and material ensure the quality that the company sets as its benchmark for its sites worldwide. Innovative glass technologies make extremely weather-resistant and robust solar modules possible. The Sunmodule Protect offers higher mechanical resilience and a longer service life, and still weighs the same as the Sunmodule Plus.

The positive power tolerance guarantees utmost system efficiency. Only modules achieving or exceeding the designated nominal power in performance tests are dispatched. The power tolerance ranges between -0 Wp and +5 Wp.

SolarWorld is setting new standards with the ground-breaking 30-year linear performance guarantee: a maximum degradation of just 0.35% p.a. provides guaranteed module performance of 90% after 21 years, and 86.85% after 30 years.
*in accordance with the applicable SolarWorld Limited Warranty at purchase.

Contact us for the latest standard or custom grid-tie SolarWorld solar panel systems at a wholesale price.

SolarWorld Protect SW 270 Certifications

Protect SW 270 Mono certifications

Contact us for low wholesale discount pricing, solar panel systems or SolarWorld Protect SW 270 Mono solar panel reviews.
