Solarworld SW 270 Mono Solar Panel

Solarworld SW 270 Mono Solar Panel

Availability: Call For Availability

Quick Overview

OUT OF STOCK

Discontinued

World-Class Quality

Fully-automated production lines and seamless monitoring of the process
and material ensure the quality that the company sets as its benchmark for
its sites worldwide.

SolarWorld Plus-Sorting

Plus-Sorting guarantees highest system efficiency. SolarWorld only delivers modules that have greater than or equal to the nameplate rated power.

25 years linear performance guarantee and extension of product warranty to 10 years*

SolarWorld guarantees a maximum performance degression of 0.7% p.a. in
the course of 25 years, a significant added value compared to the two-phase
warranties common in the industry. In addition, SolarWorld is offering a
product warranty, which has been extended to 10 years.*

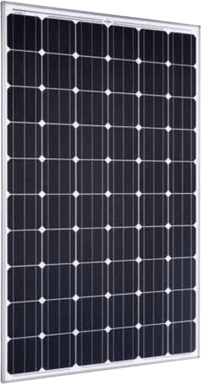

SolarWorld SW 270 Mono Solar Panel

Double click on above image to view full picture

Specifications

Model Number	SW270-Mono
STC Rating	270.0
PTC Rating	242.4
Open Circuit Voltage (V)	38.3
Short Circuit Current (A)	8.90
Frame Color	Silver
Origin	USA
Power % ±	0/5
Weight (lbs)	46.7
Length (in)	65.94
Width (in)	39.41

Manufacturer Specification Sheets

SW 270-Mono Data Sheet Size: (822.82 KB)
SolarWorld Installation Guide Size: (773.77 KB)

Details

OUT OF STOCK

Discontinued

REC Solar Panels

Performance Under Standard Test Conditions (STC*)
		SW 270	SW 270 Solar Panel
Maximum Power	P_max	270Wp
Open Circuit Voltage	V_oc	38.3 V
Maximum Power Point voltage	V_mpp	32.1 V
Short-Circuit Current	I_sc	8.90 A
Maximum Power Point Current	I_mpp	8.42 A
*STC: 1000W/m², 25°C, AM 1.5

Component Materials
Cells per module	60
Cell Type	Mono crystalline
Cell Dimensions	6.14 in x 6.14 in (156 mm x 156 mm)
Front	Tempered Glass (EN12150)
Frame	Clear anodized aluminum
Weight	46.7 lbs (21.2 kg

System Integration Parameters
Maximum system voltage SC II	1000 V
Maximum system voltage USA NEC	600 V
Maximum reverse current	16 A
Number of bypass diodes	3

Performance at 800 W/M², NOCT, AM 1.5
		SW 270	SW 270 Solar Panel Dimensions
Maximum Power	P_max	194.9 Wp
Open Circuit Voltage	V_oc	34.5 V
Maximum Power Point Voltage	V_mpp	28.9V
Short-circuit Current	I_sc	7.19A
Maximum Power Point Current	I_mpp	6.74 A
Minor reduction in efficiency under partial load conditions at 25°C: at 200 W/m², 95% - (+/-3%) of the STC efficiency (1000 W/m²) is achieved.

Thermal Characteristics
NOCT	46 °C
TCI_sc	0.004 %/K
TCV_oc	-0.30 %/K
TCP_mpp	-0.45 %/K
Operating temperature	-40°C to 85°C

Additional Data
Junction Box	IP65
Connector	MC4
Module Efficiency	16.10 %
Fire rating (UL 790)	Class C
Power sorting	-0 Wp ... +5 WP
