Stryten E-Series 6-Volt Spec Banner
Stryten Model # 3-100G17
Volts 6
NOH AH CAP (@ 8 hours) 800
Stacking Dimensions (L x H x D) 24.50'' x 8.59'' x 26.38''
Unpacked Weight 424 Lbs

* Includes 77 mm (3") additional for Module Cover Assembly. For V-0 models, add a V suffix (example 3-100G33V)


Solar Electric Supply Inc. is an
Stryten Absolyte® AGP E-Series Authorized Distributor.

GNB Absolyte GP batteries are now Stryten Absolyte AGP
Specifications/models have not changed

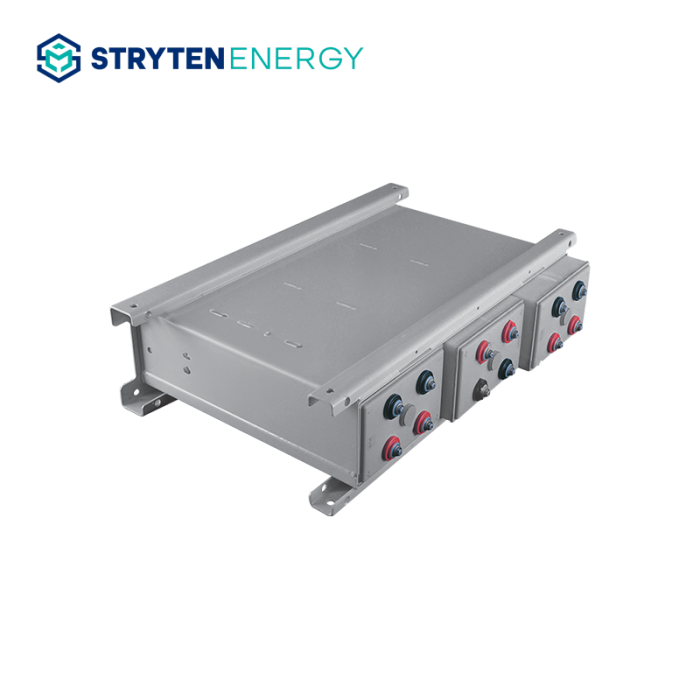

Stryten E-Series Absolyte AGP 3-100G17 6-Volt Industrial Battery

SKU STRYTEN-E-AGP-3-100G17-6-VOLT

Stryten E-Series Absolyte 3-100G17 6-Volt Industrial Battery

Introducing the Stryten E-Series Absolyte 3-100G157, a robust 6-volt battery cell, engineered to excel in challenging environments. This product is an essential power solution for diverse sectors including telecommunications, UPS, electric utility, and renewable energy, particularly solar energy systems. Harnessing the advanced valve-regulated lead-acid (VRLA) technology, the 3-100G17 reflects Strytens unwavering dedication to innovation and dependability in energy storage.

The Absolyte 3-100G17 distinguishes itself with its notable nominal capacity range, offering consistent power delivery. It boasts a reliable design life of 20 years under standard temperature conditions and demonstrates a resilient cycle life, efficient for sustained use in varied applications.

3-100G17 Battery Modules Are Application Ready

This battery is ready for immediate deployment in a variety of critical systems including:

  • Telecom Systems
  • Uninterruptible Power Supplies
  • Control and Switchgear Systems
  • Railroad Communication and Signaling
  • Solar Power Systems
  • Nautical Energy Solutions

E-Series Absolyte AGP 3-100G17 Features

  • NOM Capacities range: 105-4,800 Ah at ideal temperatures.
  • Operates between -40°F to 122°F for varied applications.
  • Patented alloy in positive plate reduces grid corrosion.
  • Color-coded terminals and sealed covers for a boost in saftey
  • Modular steel tray for easy installation.
  • Meets UL, IEEE, and IBC seismic standards for dependability.

Exclusive Custom Outdoor Battery Enclosures by Solar Electric Supply

Tailored for your specific energy needs, Solar Electric Supply's custom battery enclosures are designed to house Absolyte batteries seamlessly. Recognizing that each energy system is unique, we ensure a perfect fit and superior protection with our enclosures.

Stryten Absolyte Stackable Modules

Our Battery enclosures come in a powder-coated white finish, but we offer a variety of colors to meet your customization and branding preferences. For more details and to view all available options, Contact Solar Electric Supply today!

Solar Electric Supply Logo

For quotes and order inquiries, please provide your model, desired quantity, and zip code.

Email us at contact@solarelectricsupply.com or toll free at (877) 297-0014.

Stryten E-Series Absolyte AGP 3-100G17 6-Volt Review

Stryten Solar logo

Incorporating the trusted features of Stryten Energy’s Absolyte VRLA battery cells, the 3-100G17 model is compact, optimizing valuable space while delivering high-capacity performance. These 6-volt cells seamlessly adapt to existing infrastructures, and their efficient design includes a heat-sealed cover and jar for a secure seal. Safety is enhanced with a self-resealing vent, ensuring durability and a lasting power solution. The battery also features color-coded terminal polarity and heat-sealed post seals, facilitating easy maintenance and offering a robust, non-corrosive polypropylene bond.

  1. High capacity in a small footprint - Frees up valuable floor space for other equipment
  2. Jar to cover heat seal - Jar and cover are heat sealed and bead smoothed for a more reliable seal
  3. Safety vent - 3.5 - 9 psi opening pressure. Self-resealing
  4. Color-coded terminal polarity - Provides easy terminal identification
  5. Heat sealed post seal - Non-corrosive polypropylene-to-polypropylene bond is as strong as the original material
  6. Interface between lead post and plastic sleeve - Coated with a viscous agent which ensures a virtually leak-free bond
  7. Modular steel tray - Easy to install
  8. Container and Cover - Flame retardant UL94 V-0/28% L.O.I. polypropylene is standard; non-flame retardant is optional
  9. Positive plate grid alloy - Ideal for both float and cycling applications
  10. High separator compression - Reduces possibility of loss of capacity and degradation of the plate-to-separator contact
  11. Space for positive plate growth - Space is provided so growth can occur away from post and cover
  12. Post Access optimized - for ease of maintenance and assessment of battery health

GNB Industrial Is Now Stryten Energy

Stryten Energy helps solve the world’s most pressing energy challenges with a broad range of energy storage solutions and components across the Essential Power, Motive Power, Transportation, Military and Government sectors. Headquartered in Alpharetta, Georgia, they partner with some of the world’s most recognized companies to meet the growing demand for reliable and sustainable energy storage capacity. Stryten powers everything from submarines to subcompacts, microgrids, warehouses, distribution centers, cars, trains and trucks.

Strytens' stored energy technologies include advanced lead, lithium and vanadium redox flow batteries, intelligent chargers and energy performance management software that keep people on the move and supply chains running.
