UpSolar UP-M240P-B Solar Panels

Availability: Call For Availability

Quick Overview

PowerGuard Warranty Summary

Upsolar’s PowerClip warranty policy protects against design defects, delaminating modules, power output falling outside the established degradation curve and coverage begins immediately.

The Program is available for purchase on all modules sold by Upsolar Group Co., Ltd. and subsidiary companies. The funding of valid claims filed by end-customers pursuant to Upsolar’s module warranty is guaranteed on all modules covered by the PowerClip warranty policy.

The Program delivers non-cancellable, irrevocable coverage and is fully-paid for, meaning valid claims will be paid out regardless of the solvency of Upsolar over the full 25-year term, by A.M. Best rated "A" (Excellent) or better internation- ally recognized insurance providers.

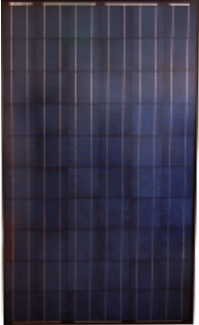

UpSolar UP-M240P-B Solar Panels

Double click on above image to view full picture

Zoom Out
Zoom In


Model Number UP-M240P-B
STC Rating 240.0
PTC Rating 212.4
Open Circuit Voltage (V) 37.6
Short Circuit Current (A) 8.40
Frame Color Black
Origin China
Weight (lbs) 41.9
Length (in) 64.57
Width (in) 39.06
Height (in) 1.57

Manufacturer Specification Sheets

View FileUpSolar UP-M240P-B Data Sheet    Size: (929.74 KB)
View FileInstallation Support    Size: (383.37 KB)


Electrical Characteristics
Model UP-M220P-B UP-M225P-B UP-M230P-B UP-M235P-B UP-M240P-B
Max Power Pm (Wp) 220 225 230 235 240
Max Power Voltage Vm (V) 28.9 29.4 29.8 30.2 30.2
Max Power Current Im (A) 7.62 7.66 7.70 7.75 7.79
Open-Circuit Voltage Voc (V) 36.9 37.2 37.4 37.6 37.6
Module effieciency 13.4% 13.8% 14.1% 14.4 14.8
Maximum System Voltage (V) 600 (UL) / 1000 (IEC)
Power Tolerance ± 3%
Series Fuse Rating (A) 20
Components & Mechanical Data
Front Glass High Transparency Tempered Glass, 0.125” // 3.2 mm - CSG
Junction Box Huber+Suhner (IP 67) Radox HA3
Weight 3 diodes - ST STPS1545CG
Output Cables 1.0m H+S, Radox smart // IEC,UL approved (0,0062 in² // 4mm²,12AWG)(PV Wire Type)
Connectors MC4 IP67, IEC and UL approved
Frame Anodized aluminum alloy type 6063-T5
Encapsulation Material EVA (0.019”//0.50mm ± 0.001”//0.03mm thickness)

Black TPT (0.012”//0.32mm± 0.001”//0.03mm thick

Back Sheet -40°F to +194°F // -40°C to +90°C
Temperature Range 63.2x32x.65 in. (1607x815x1650 mm)
Max Load 75 lbs/ft2 (UL Standards) // 5400 Pa (IEC Standards)
Impact Resistance Steel ball – 1.18 lbs // 535g dropped from 51” // 1.3m high
