|Enphase Model Number||IQ7A-72-2-US|
|Designed for 240 VAC, 60-Cell, 66-cell & 72-Cell solar panel systems.|
|Input Power (DC)|
|Solar Panel Compatibility||235 W - 440 W +|
|Maximum DC Input||58 V|
|Peak Power Tracking Voltage||27-45 V|
|Operating Range||38-43 V|
|Max DC Short Circuit Current||15 A|
|Output Power (AC)||@240 V|
|Maximum Voltage||349 VAC|
|Peak output power||366 VA|
|Maximum continuous output power||349 VA|
|CEC weighted efficiency||97.0%|

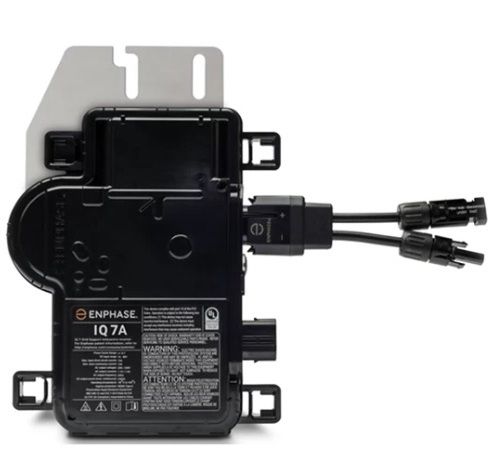

Enphase IQ7A-72-2-US Microinverter - 240VACSKU IQ7A-72-2-US
Enphase IQ7A-72-2-US Micro for 60, 66 & 72-Cell Solar Panels - 240VAC
The Enphase IQ7A-72-2-US is designed for modern grid-tied solar PV systems using 60-cell or 72-cell solar panels connected to 240 VAC utility power.
Enphase's seventh-generation microinverters are powered by their unique software-defined architecture with an efficient design. The IQ7A-72-2-US Micro produces 4% more power, and is 19% lighter and 17% smaller than the IQ 6 series. The IQ 7 continues to offer the same ease of installation with the revolutionary 2-wire Q-Cable . It also leverages semiconductor integration for higher reliability and better economies of scale.
Part of the Enphase IQ System, IQ 7A Micro inverters integrate seamlessly with the Enphase IQ Envoy™, Enphase Q Aggregator™, Enphase IQ Battery™, and the Enphase Enlighten™ monitoring and analysis software.
The IQ7A-72-2-US Microinverter extends the reliability standards set forth by previous generations and has over a million hours of power-on testing. This thorough testing of proven solid-state technology enables Enphase to have the confidence to provide an industry-leading warranty of up to 25 years.
Easy to Install
• Lightweight and simple
• Faster installation with improved two-wire cabling
• Built-in rapid shutdown compliant (NEC 2014)
Productive and Reliable
• Optimized for high powered 60-cell PV modules
• More than a million hours of testing
• Class II double-insulated enclosure
Smart Grid Ready
• Complies with fixed power factor, voltage and frequency ride-through requirements
• Remotely updates to respond to changing grid requirements
• Configurable for varying grid profiles
Enphase IQ Battery Compatible!
• Low upfront cost
• Easy to expand
• Lithium-ion technology
• 10 year battery life expectancy
Learn more about the Enphase IQ Battery Energy Storage System.
Residential Enphase IQ7A-72-2-US Microinverter Solar Systems
Solar Electric Supply provides complete systems and design at a low wholesale price.
These pre-engineered PV systems include IQ 7 microinverters, roof or ground mount, Envoy Energy Management Unit (EMU), Q Aggregator, Q cables, disconnects and breakers. We support our customers in the US with friendly knowledgeable staff that is here to help with your microinverter solar system questions.
Contact us toll-free at (877) 297-0014.
Enphase 240 VAC IQ 7A Micro for 60-Cell, 66-cell & 72-Cell Solar Panels Review
Powerful and lightweight
The Enphase IQ 7A Microinverter supports 60-cell , 66-cell and 72-cell solar panels up to 460 Watts DC. These are 19 percent lighter than Enphase IQ 6 microinverters and even lighter than other microinverters on the market today. The light weight and up to 25 year warranty is possible due to their double insulated, non-corroding polymeric enclosure. IQ 7A Microinverters are known for their impressive power harvest with an impressive CEC efficiency of up to 97 percent.
Quick and easy
• The two-wire Enphase Q Cable is 50 percent lighter than the previous generation of Enphase trunk cable.
• The Enphase Q Aggregator offers simple "plug and play" connection for up to three branches on the roof.
• The Enphase Q Combiner provides further installation and commissioning efficiency.
The Enphase Home Energy Solution with IQ uses a single technology platform for seamless management of the whole PV microinverter system. This consolidated rapid commissioning is simply performed via the Enphase Installer Toolkit.
• Consumption monitoring is available with a metered Envoy and CTs.
• Energy insights provided by the Enlighten Software platform's easy-to-use interface.
Smart grid ready
Enphase IQ 7A micros comply with fixed power factor, voltage and frequency ride-through requirements. All IQ7 micro inverters meet current and known future requirements for distributed solar on utility networks, including Rule 21 in California and Hawaiian Electric Company Rule 14H.
Rapid shutdown ready
The IQ family, like all previous Enphase microinverters, is fully compliant with NEC 2014 and 2017 rapid shutdown requirements. Unlike string inverters, this capability is built-in, with no additional equipment necessary.
- CA Rule 21 (UL 1741-SA)
- UL 62109-1, UL1741/IEEE1547, FCC Part 15 Class B, ICES-0003 Class B,
- CAN/CSA-C22.2 NO. 107.1-01
This product is UL Listed as PV Rapid Shut Down Equipment and conforms with NEC-2014 and NEC-2017 section 690.12 and C22.1-2015 Rule 64-218 Rapid Shutdown of PV Systems, for AC and DC conductors, when installed according manufacturer’s instructions.
Enphase IQ 7A Microinverter Accessories
Complete Enphase IQ 7A Microinverter solar panel systems and quantity discounts available.
