16 KW Flat Metal Roof Solar System Project - Forest Street Mini Storage

Availability: Call For Availability


commercial solar system  Commercial Solar System Installation Projects

16 KW Mini Storage Commercial Metal Roof Solar System

This 16 KW grid-tie solar system uses 60 LG 265 watt solar panels mounted to a flat standing seam metal roof on top of Forest Street Mini Storage in Gilroy, CA.

This commercial system was installed by one our Premier Installers, Day One Solar, a Santa Cruz, CA based residential and industrial solar contractor. The owner did not want roof penetrations so S-5! Standing Seam metal roof clamps were used to support the IronRidge racking system.

Components supplied by Solar Electric Supply include:

  • LG Solar Panels
  • 2 Fronius IG grid-tie inverters
  • IronRidge roof mount system
  • S-5! metal clamps
  • Solar Electric Supply system design and support

Contact us for expert advice and the latest low wholesale flat roof commercial solar system pricing.


Flat Metal Roof Solar System - Storage Building

Double click on above image to view full picture

Zoom Out
Zoom In


Solar Panels 60 LG265S1C-G3
Inverters Fronius IG 7 Plus
Roof Mount System IronRidge Racks w/ S-5! clamps
Panel Frame Color Black
Panel Dimensions 64.57" x 39.37" x 1.38"


Standing seam flat metal roof mounted solar system:

LG solar panel
60 LG 265 Watt Mono-X Solar Panels
Fronius IG Plus Inverter
Fronius IG Plus Grid-Tie Inverters

Ironridge mount
IronRidge Roof Mount System

S-5! Clamp
S-5! Standing Seam Metal Clamps
AC Disconnect Square D
Heavy Duty AC Disconnect

MC Cables & Ground Lugs MC Cables &
Ilsco Ground Lugs
Wiring Diagram Solar Electric Supply
Wiring Diagram & Installation Guide

Fronius Inverters

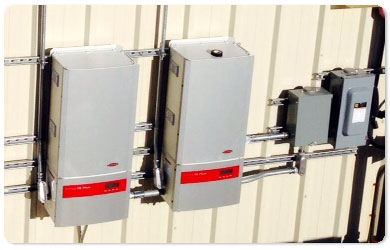

Two Fronius grid-tie inverters are mounted outdoors
with a heavy duty AC disconnect.
Photo courtesy Day One Solar.

All of our commercial solar systems are uniquely tailored for each customer's needs.

Contact us for sales, reviews and wholesale commercial standing metal seam flat-roof solar system pricing.
