90 Watt 12VDC 198Ahr Class 1 Division 2 Solar System

Availability: Call For Availability


SES C1D2 logo
2 battery 12 volt Class 1 Division 2 solar system.

MAPPS Class 1 Division 2 solar system logo
Class 1 Division 2 Solar Systems

90 Watt 12VDC 198Ahr Class 1 Division 2 Solar System

C1D2 hazardous location solar power system
Solar system designed and certified for Class 1 Division 2 Hazardous Locations.

Suited for Hazardous Locations

This safe, reliable, durable, and rugged system is designed to require minimal maintenance and long life. Twenty year design life (with battery replacements approximately every five to seven years).

C1D2 certified solar electric systems have no moving parts. Solar Electric Supply deals only in modules and components with the highest international standards, such as Underwriters Laboratories (UL) and ETL Intertek listings in the US, and approval by the Commission of the European Communities (CEC) in Europe.

90W Class 1 Division 2 Solar System w/ 2 batteries

battery enclosure charge controller installed Pre-wired charge controller included.
enclosure latch
closed battery box latch
Features two draw-latches that are lockable for up to a 3/8" max shackle.
  • Enclosure comes pre-assembled and pre-wired, for quality control and quick installation
  • Designed for 2”-4” SCH40 pole mount
  • System voltage: 12 volts DC
  • Solar module and regulator are UL listed and certified
  • Batteries are maintenance-free Deka Solar gel cell for deep cycle operation and extended life in solar applications
  • Charge regulators include Low Voltage Disconnect (LVD) and temperature compensation
  • Enclosures are powder coated aluminum for corrosion resistance and include padlockable hasps.
  • Electronics are housed in a separate compartment
  • Circuit breakers are included as a means of disconnect and for short circuit protection
  • Systems use with SES Solar C1D2 certified PV module
  • External wiring sold separately


Class 1 Division 2 solar system

Conforms to: ISA STD 12.12.01 & UL STD 508A. The UL STD 508 certification is required for Class 1 Division 2 Hazardous Locations.

Class 1 Division 2 Solar System Applications

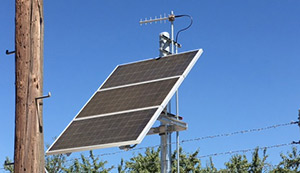

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar system is ideal for your next remote Class I Division II Hazardous Location project.

C1D2 pipe for solar battery system

Solar battery powered C1D2 examples can include:
oil flow measurement & monitoring, level measurement, wireless communication, well site automation, cathodic protection, environmental monitoring, chemical injection pumps, SCADA and UPS battery backup systems.

Contact us with your solar powered application today. OEM pricing available.

Call toll-free: (877) 297-0014

90 Watt 2-Battery 12 Volt Class 1 Division 2 Solar System

Double click on above image to view full picture

Zoom Out
Zoom In


SES MAPPS Class 1 Division 2 Solar System

Model Number MAPPS-90-198-12-C1D2
Nominal System Voltage 12 VDC
Solar PV Module

SES 490J 12 Vdc 90 Watts

Solar Module Certifications ETL Listed to UL 1703, Class 1 Division 2, Group A,B,C,D
PV Module Mount SPM-1-Multi side of pole mount
130 MPH & 170 MPH options available
Battery Type 2X Deka Solar 8G27 Gel Cell
Battery Capacity 12V 198 Ahr at 100 hour discharge rate
Enclosure Model AL-POL-2-G27-D2-HZ C1D2
Enclosure Certifications UL Listed NEMA 4 Industrial Control Panel Enclosure w/ NEMA 3R Battery Enclosure
Charge Controller SunSaver SS-20L-12V
Controller Certifications ETL for Class 1 Div 2 Groups A-D and UL 1604 & 1741
MAPPS System Weight 188 lbs.
Origin USA
Price $5,350
Optional UL C1D2 Listing Available

Manufacturer Specification Sheets

View File90 Watt 12VDC 198Ahr Class 1 Division 2 Solar System Datasheet    Size: (180.83 KB)


MAPPS 90 Watt 12 Volt Dual Battery Class 1 Division 2 Solar System Review

C1D2 battery box enclosure review

Solar Electric Supply specializes in supplying dealer, contractor, government and industrial accounts worldwide with reliable, cost-effective Class I Div II solar electric power solutions.

Class 1 Division 2 Solar Systems  ·  Contractor Discounts Available


Contact us toll-free: (877) 297-0014 for expert assistance and wholesale prices for the SES MAPPS 90W 12 volt Dual Battery Class 1 Division 2 Solar System.
