| Model Options | RB-SHUNT-KIT-500 / RB-SHUNT (Block Only) |
| Shunt Inputs | 2 Independent Channels |
| Shunt Scaling Options | 50mV / 100mV |
| Measurement Accuracy | < 0.4% at Full Scale |
| Current Measurement | Net Battery, Charging Source, Load |
| Self Consumption | < 0.8W |
| Operating Temperature | -40°F to 140°F (-40°C to +60°C) |
| Mounting | 35mm DIN Rail / ReadyRail |
| Enclosure Rating | IP20 / Type 1 Indoor |
| Available Shunts | 50A, 100A, 500A (50mV) |
| Battery Chemistries | Lead-Acid, Lithium, NiCd, Flow |
| Weight | 2.5 oz (70g) |
Part of The GenStar DC System Controller
Combines proven TrakStar MPPT technology with innovative ReadyRail expansion capabilities. Available in 60A, 80A, and 100A configurations.
Morningstar ReadyShunt Battery Meter & DC Current Sensor
SKU MS-READYSHUNT-ACC

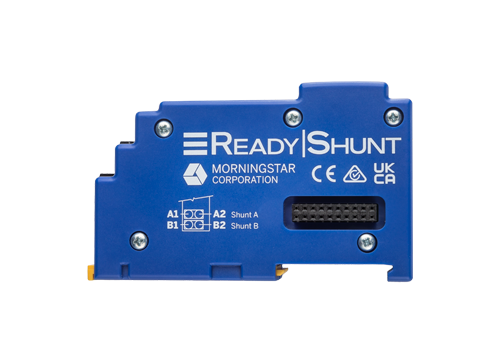

Morningstar ReadyShunt
The ReadyShunt provides comprehensive battery monitoring and current measurement capabilities through seamless integration with ReadyRail-equipped Morningstar charge controllers. This intelligent battery meter delivers real-time state-of-charge (SOC) calculations, energy flow tracking, and system-wide current monitoring for lead-acid, lithium, and other battery chemistries.
ReadyShunt Features
- Integrated Battery Metering: Real-time SOC calculations and battery health monitoring for lead-acid, lithium, and other chemistries with automatic calibration and temperature compensation.
- Dual Current Monitoring: Two independent shunt inputs enable simultaneous monitoring of charging sources, loads, and net battery current for comprehensive system visibility.
- LiveView Integration: Automatic data integration with GenStar MPPT LiveView dashboard for seamless monitoring and logging without third-party software or configuration requirements.
- System Charge Protection: Enables coordinated charging from multiple sources while preventing battery charge rate limits from being exceeded under any system conditions.
- ReadyRail Compatibility: Snap-in installation with instant recognition and activation - no additional wiring, configuration, or software setup required for immediate operation.
Available ReadyShunt Configurations
Complete Kit (RB-SHUNT-KIT-500) Includes ReadyShunt block with 500A/50mV shunt for immediate installation and operation. Ideal for most residential and commercial solar systems requiring comprehensive battery monitoring.
ReadyShunt Block Only (RB-SHUNT) Snap-in monitoring block for use with existing shunts or custom installations. Compatible with 50mV and 100mV shunts from 50A to 500A ratings.
- RB-500-50: 500A 50mV shunt for high-current applications
- RB-100-50: 100A 50mV shunt for medium-scale systems
- RB-50-50: 50A 50mV shunt for smaller battery banks
MorningStar ReadyShunt Battery Monitor & DC Current Sensor Review
The ReadyShunt represents a significant advancement in battery monitoring technology by eliminating the complexity traditionally associated with shunt-based current measurement systems. The dual-input design with 0.4% measurement accuracy provides professional-grade monitoring capabilities while the automatic LiveView integration removes the need for separate monitoring software or third-party devices that often complicate system installation and maintenance. For solar installations requiring precise battery management, particularly those with lithium batteries or multiple charging sources, the ReadyShunt delivers essential SOC accuracy and system coordination capabilities that optimize both performance and battery longevity.
MorningStar ReadyBlock Suite of Components

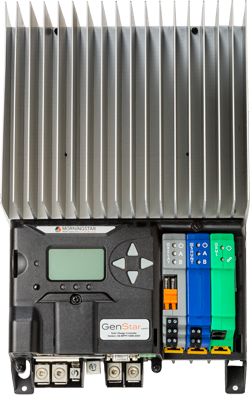

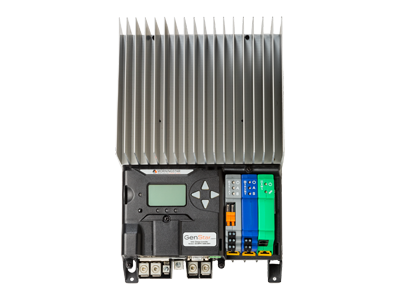

GenStar MPPT Controller
- Full network integration without requiring adapters or extra equipment–Modbus and ModbusIP via 485, Ethernet, WiFi, MS-CAN connects MS Devices (proprietary), GS network information bridging.
- Powerful Load Control – built-in 30A load capability, unique for controllers in this power class
- Oversized PV Array Input capability – array input power rating @ 150% meets today’s system design needs for PV oversizing

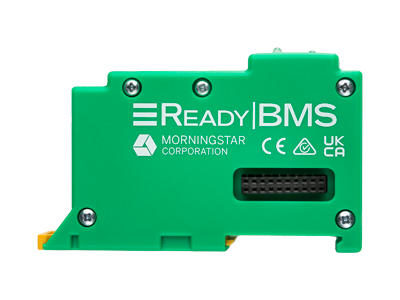

ReadyBMS
- Integrates lithium battery intelligence through true closed-loop communications with Tier 2 battery manufacturers
- Currently supports two-way communication with Discover and PylonTech LiFePO4 batteries for optimal charging profiles
- Part of Morningstar's Energy Storage Partner program with additional battery partnerships continuously added

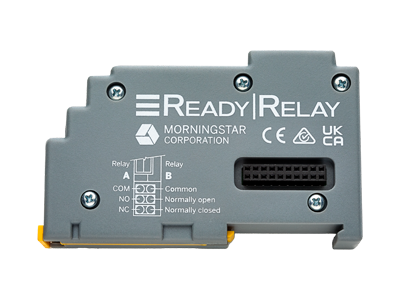

ReadyRelay
- Snaps directly into ReadyRail-equipped controllers for advanced load control and system automation
- Program custom start/stop sequences for generators and fuel cells, or schedule ON/OFF control for lights, fans, and other loads
- Simple wiring connections enable dry contact signaling and alarm conditions for comprehensive system management
