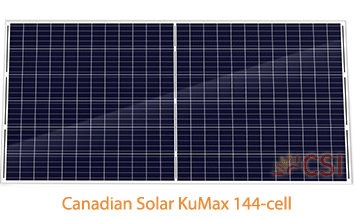

  KuMax Canadian Solar KuMax 144-cell |
|
| Canadian Solar Panel Model # |
Also available with: |
| Panel STC Rating | 400.0 W |
| Panel PTC Rating | 371.8 |
| Watts per Sq./Ft. | 18.72 |
| Panel Efficiency | 20.16% |
| Panel Frame Color | Black |
| Panel Dimensions | 78.7" x 39.1" x 1.38" |
Canadian Solar KuMax CS3U-400MS Ground Mounted Solar Panel Systems
Canadian Solar KuMax CS3U-400MS Ground Mounted Solar Panel Systems
These low priced solar systems were designed by our staff in the United States with your choice of ground mount in mind. These complete systems ship with 144-cell "KuMax" CS3U-400MS 400W solar panels, a SolarEdge grid-tie inverter and Power Optimizers for each solar panel.
Quality system components and professional assistance assure you made the best decision when you purchased your Canadian Solar modules and USA designed system from Solar Electric Supply.
What's Included?
- 400W Canadian Solar KuMax CS3U-400MS 144-cell solar panels
- SolarEdge HD Wave grid-tie inverter
- SolarEdge Power Optimizers
- Prosolar, IronRidge or MT Solar ground mount
- MC module interconnect cables
- Grounding lugs
- Array combiners in larger systems
- AC solar disconnects
- CA stamped structural testing reports for ground mount
- Component installation manuals
- Friendly knowledgeable technical assistance
Additional Items/Services Available
- PE Stamped Permit Submittal Plans - Not available in all locations, Contact us for more information and project review.
- Site specific electrical single and three line schematics including wire schedule
With Solar Electric Supply, you have a choice! |
||||
|
What's Not Included?
- Standard conduit, ground, tie-in wiring & landing breakers
- Additional load center hardware, breaker boxes, etc.
KuMax 144-Cell Solar Panels
Canadian Solar has developed an innovative cool module design, KuMax, based on Low Internal Current (LIC) module technology, the 144-cell KuMax CS3U-400MS solar panel features the next generation of module technology. These may be used in solar applications where one would have otherwise used 72-cell solar panels in the past.
The 400 watt KuMax CS3U-400MS solar panel features reliable polycrystalline solar cells with an efficient MBB solar cell design. A 35mm crossbar enhanced anodized aluminum frame ensures the robustness of this solar panel for up to a 5400 Pa snow load and an impressive wind load of up to 3600 Pa. KuMax solar panels are perfect for ground-mounted solar PV system installations.
Check out our low wholesale system prices below.
Contact us toll-free: (877) 297-0014 for expert assistance.
Ground Mounted Canadian Solar KuMax Solar Panel System Price List
| System Power |
# of panels |
Array Area |
SolarEdge Inverter |
Base Price |
MT Solar Price |
System Part # |
| 9.60 KW | 24 | 513 ft2 | SE7600H-US | $16,561.00 | $19,345.00 | SES-CSI-400-9.6-SE7.6HD-GND |
| 12.80 KW | 32 | 684 ft2 | SE11400H-US | $21,129.00 | $24,841.00 | SES-CSI-400-12.8-SE11.4HD-GND |
| 14.40 KW | 36 | 769 ft2 | SE11400H-US | $23,412.00 | $27,588.00 | SES-CSI-400-14.4-SE11.4HD-GND |
| 17.60 KW | 44 | 940 ft2 | 2X SE7600H-US | $29,358.00 | $34,462.00 | SES-CSI-400-17.6-2XSE7.6HD-GND |
| 19.20 KW | 48 | 1026 ft2 | 2X SE10000H-US | $31,642.00 | $37,210.00 | SES-CSI-400-19.2-2XSE10HD-GND |
| 20.80 KW | 52 | 1111 ft2 | 2X SE10000H-US | $35,139.00 | $41,171.00 | SES-CSI-400-20.8-2XSE10HD-GND |
| 24.00 KW | 60 | 1282 ft2 | 2X SE11400H-US | $39,974.00 | $46,934.00 | SES-CSI-400-24.0-2XSE11.4HD-GND |
| 25.60 KW | 64 | 1368 ft2 | 2X SE11400H-US | $42,257.00 | $49,681.00 | SES-CSI-400-25.6-2XSE11.4HD-GND |
| 28.80 KW | 72 | 1539 ft2 | 3X SE7600H-US | $47,463.00 | $55,815.00 | SES-CSI-400-28.8-3XSE7.6HD-GND |
System Options |
|
 |
 MT Solar Ground Mount |
 |
Multi-Pole Mount |
 |
Roof Mount |
 |
Combiner Box |
Contact us toll-free: |
|
All base Canadian Solar KuMax solar panel systems include:
 |
Canadian Solar KuMax CS3U-400MS solar panels |
|||
 |
  SolarEdge HD Wave Grid-tie Inverter w/ SetApp |
|||
 |
||||
 |
|
|||
 |
||||
 |
||||
 |
 Wiring Diagram & Installation Guide |
KuMax Solar Panel Certifications
Management System Certificates
- ISO 9001:2015 / Quality Management System
- ISO 14001:2015 / Standards for environmental management system
- OHSAS 18001:2007 / International standards for occupational health & safety
Product Certificates
- IEC 61215 / IEC 61730: VDE / CE / MCS / CEC AU
- UL 1703 / IEC 61215 performance: CEC listed (US) / FSEC (US Florida)
- UL 1703: CSA / IEC61701 ED2: VDE / IEC62716: VDE / IEC60068-2-68: SGS
- Take-e-way
Canadian Solar CS3U-400MS Solar Panel Warranty
12 Year
Enhanced product warranty on materials and workmanship
25 Year
Linear power output warranty
*We can provide this product with special BOM specifically certified with salt
mist, ammonia and sand blowing tests. Please contact us to get your customized solutions.
Different solar panels, mount & inverter available at low wholesale prices.
Contact us toll-free: (877) 297-0014 - All Canadian Solar solar panel systems can be custom designed.
Contractor Discounts Available · Canadian Solar Solar Panel Systems
Contact us for sales, reviews and low wholesale prices for ground-mount Canadian Solar Kumax solar panel systems.
