SigenStor EV DC Charging Module Specifications
| Model | SigenStor EVDC 25 |
| Max. Charging Power | 25 kW |
| Max. Discharging Power | 25 kW |
| Output Voltage Range | 150 – 1000 V |
| Max. Output Current | 80 A |
| Charging Connector | CCS1 / NACS |
| Operating Temperature | -22°F to 140°F (-30°C to 60°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Relative Humidity Range | 5% – 95% |
| Dimensions (W × H × D) | 27.56 × 10.63 × 10.24 in |
| Weight | ≤ 89 lbs (≤ 40 kg) |
| Cooling Method | Smart Air Cooling |
| Enclosure Type | NEMA 4X / IP66 |
| Cable Length Options | 16.4 ft (5 m) or 24.6 ft (7.5 m) |
| Max. Operating Altitude | 13,123 ft (4000 m) |
| Authentication | RFID Card / App / No Authentication |
Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

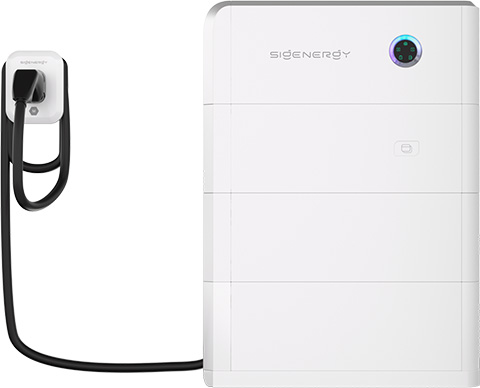

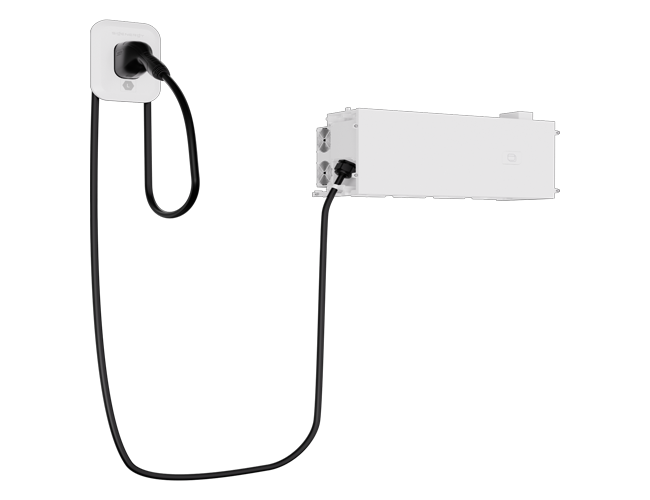

Sigenergy 25kW Bi-Directional DC EV Charger (EVDC 25)
SKU SIG-EVDC-25-CHARGER

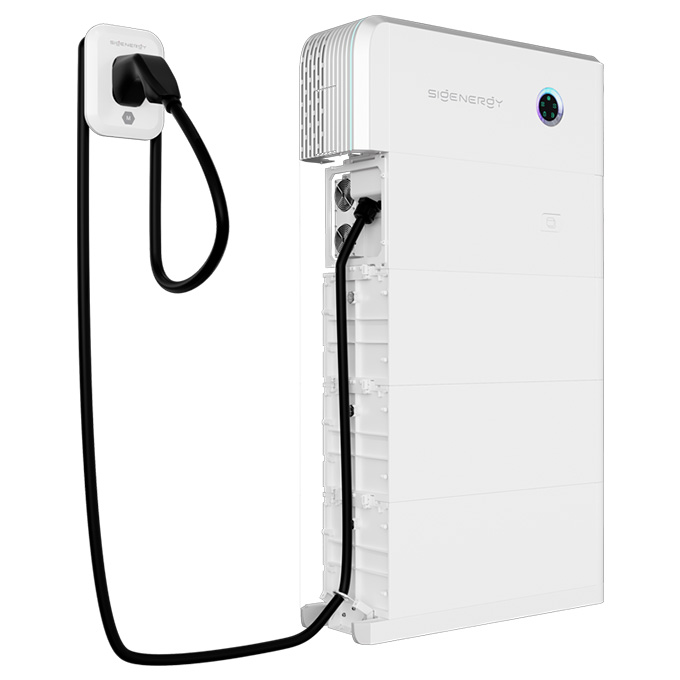

The Sigenergy SigenStor EVDC 1 is a 25kW bi-directional DC charging module engineered to serve as the central energy bridge between electric vehicles, solar generation, battery storage, and the electric grid. This advanced DC-coupled system delivers up to 25kW charging power and 25kW discharge capability, enabling rapid EV charging with approximately 150 km of driving range added per hour while simultaneously supporting Vehicle-to-Home (V2H) and Vehicle-to-Grid (V2G) applications.

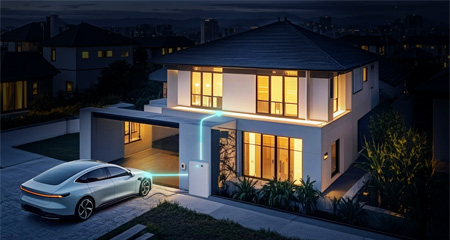

The unit features dual connector compatibility with CCS1 and NACS (Tesla) standards, operating across 150-1000V output voltage range with 80A maximum current capacity. By leveraging DC-coupled architecture, the system allows electric vehicles to charge directly from solar-generated electricity without multiple conversion losses, achieving 100% green power charging efficiency while providing virtual grid capacity expansion through intelligent bidirectional power flow.
SigenStor EVDC Module Features
- Rapid DC Charging: 25kW charging capacity delivers approximately 150 km driving range per hour, significantly faster than Level 2 AC charging solutions
- Vehicle-to-Home Backup: V2H capability transforms EV batteries into emergency backup power sources, providing 100+ kWh storage capacity when combined with Sigenergy battery systems
- 100% Green Charging: DC-coupled architecture enables direct solar-to-vehicle charging without AC conversion losses, maximizing renewable energy utilization
- Grid Services Revenue: V2G functionality allows EV battery capacity to participate in peak shaving, load balancing, and demand response programs for energy cost optimization
- Outdoor-Rated Durability: IP66/NEMA 4X enclosure with filterless smart air cooling eliminates maintenance while providing complete dust and water ingress protection
Adaptable to All Your Charging Needs
The SigenStor EVDC 1 delivers intelligent charging optimization through multiple operational modes tailored to specific energy scenarios and user priorities.
- Maximum Power Rapid Charging: Delivers full 25kW charging capacity by intelligently drawing power from solar generation, grid connection, and battery storage simultaneously for fastest possible charging times
- Surplus PV Priority Charging: Automatically charges EVs with excess solar production while maintaining configurable priority ranking between EV charging and home electrical loads for maximum self-consumption
- Battery-Boosted Charging: Leverages battery storage to supplement EV charging power beyond available solar and grid capacity, with intelligent state-of-charge management to prevent excessive battery depletion
Sigenergy 25kW Bi-Directional DC EV Charger Technical Review
The SigenStor EVDC 1 EV charging module shines through its implementation of true bi-directional power flow at 25kW capacity. Unlike conventional AC Level 2 chargers limited to 7-12kW single-phase or 19.2kW three-phase operation, the DC-coupled architecture delivers power directly to EV battery packs at their native DC voltage, eliminating onboard charger bottlenecks and conversion losses. The 150-1000V output voltage range accommodates both legacy 400V battery architectures and emerging 800V ultra-fast charging platforms used in premium EV models, while the 80A current limit ensures compatibility with vehicle-side charging standards.
Vehicle-to-Home functionality transforms EV battery packs into mobile distributed energy resources, with typical 75-100 kWh vehicle batteries providing multi-day backup power when combined with intelligent load management. Vehicle-to-Grid capability enables participation in utility demand response programs, peak shaving applications, and frequency regulation services, generating revenue streams while supporting grid stability during high-demand period
Sigenergy SigenStor Product Ecosystem
SigenStor Energy Controller
Advanced hybrid inverter with integrated EMS and 4 MPPTs supporting 2:1 DC/AC ratio for oversized PV arrays, delivering 3.84-11.5kW output with seamless grid/off-grid switching and multi-source black start capability.
Sigen LoadHub
Intelligent energy management hub that automatically detects grid outages and provides seamless 0ms transition to backup power, ensuring uninterrupted operation of your essential loads.
Sigen 6kw Battery Module
Compact LiFePO4 battery module featuring premium 314Ah cells rated for 10,000 cycles, delivering 6.02kWh capacity with 100% depth of discharge and 3kW continuous power output.
Sigen 9kw Battery Module
High-capacity LiFePO4 battery module with 9.04kWh storage and 4.6kW continuous power, featuring advanced battery optimization that allows mixing old and new modules for easy system expansion.
