SigenStor BAT-6.0 US Specifications
| Model | SigenStor BAT-6.0 US |
| Battery Type | LiFePOâ‚„ (Lithium Iron Phosphate) |
| Total Energy Capacity | 6.02 kWh |
| Usable Energy Capacity | 5.84 kWh |
| Max. Charge/Discharge Power | 3000 W |
| Peak Power (10 seconds) | 4500 W |
| Operating Temperature | -4°F to 131°F (-20°C to 55°C) |
| Storage Temperature | -13°F to 140°F (-25°C to 60°C) |
| Relative Humidity Range | 5% – 95% |
| Dimensions (W × H × D) | 30.2 × 10.6 × 10.4 in (767 × 270 × 265 mm) |
| Weight | 136.7 lbs (62 kg) |
| Cooling Method | Natural Convection |
| Enclosure Type | Type 4X |
| Installation Method | Floor Standing / Wall-Mounted |
| Max. Operating Altitude | 13,123 ft (4000 m) |
Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

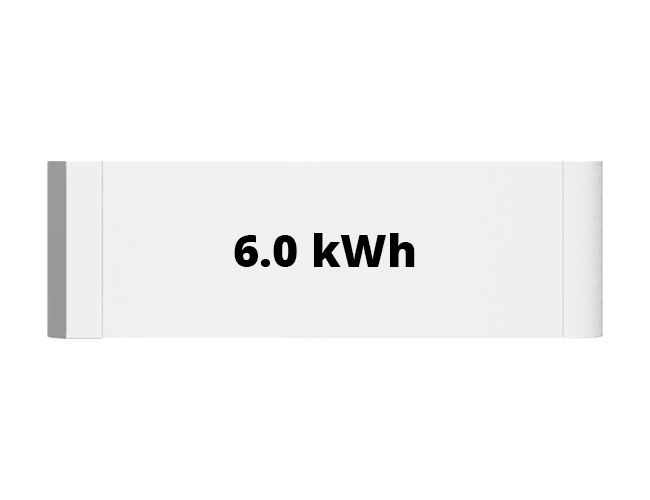

Sigenergy SigenStor 6kWh LiFePO4 Battery Module BAT-6.0 US
SKU SIG-BAT-6.0-US-MODULE
The Sigenergy SigenStor BAT-6.0 US is a modular lithium iron phosphate (LiFePOâ‚„) battery system delivering 6.02 kWh total energy capacity with 5.84 kWh usable capacity for residential energy storage applications. This battery module provides 3000W continuous charge and discharge power with 4500W peak capability for 10-second durations, enabling rapid response to high-demand loads and grid fluctuations.
The modular architecture supports parallel connections for scalable capacity expansion, allowing multiple battery units to be configured based on energy storage requirements. Type 4X enclosure rating provides protection against corrosion, dust, and water ingress for both indoor and outdoor installations, while dual mounting options accommodate floor-standing and wall-mounted configurations.
SigenStor BAT-6.0 US Features
- Maximum Energy Utilization: 97% depth of discharge (5.84 kWh usable from 6.02 kWh total) extracts maximum value from installed capacity while maintaining long-term battery health
- Peak Load Handling: 4500W peak discharge capability for 10 seconds manages motor starting currents and high-demand appliance operation without system shutdown
- Flexible Scalability: Modular parallel connection architecture allows capacity expansion by adding additional battery modules to meet growing energy storage requirements
- Multi-Layer Safety: Comprehensive protection systems including cell-level monitoring, thermal management, and fault detection ensure safe operation across all conditions
- AI-Optimized Performance: Intelligent battery management algorithms through mySigen App optimize charge/discharge cycles for extended battery life and maximum efficiency
Sigenergy SigenStor BAT-6.0 US Certifications
The Sigenergy SigenStor BAT-6.0 US meets comprehensive North American safety and performance standards for stationary energy storage systems.
- UL 1973 - Batteries for use in stationary, vehicle auxiliary power and light electric rail (LER) applications
- UL 1998 - Software in programmable components for energy storage systems
- UL 9540 - Energy storage systems and equipment safety standard
- UL 9540A - Test method for evaluating thermal runaway fire propagation in battery energy storage systems
- UN 38.3 - United Nations transportation testing for lithium batteries
- CA Proposition 65 - California compliance for chemical exposure warnings
- FCC Part 15 Class B - Federal Communications Commission electromagnetic interference standards for residential equipment
Sigenergy SigenStor BAT-6.0 US Technical Review
The SigenStor BAT-6.0 US leverages lithium iron phosphate chemistry to deliver superior cycle life and thermal stability characteristics essential for daily charge/discharge applications in residential energy storage systems. The 97% usable capacity ratio (5.84 kWh usable from 6.02 kWh total) indicates conservative depth-of-discharge limits programmed into the battery management system to maximize cycle life, typically extending battery longevity beyond 6000 cycles at 80% capacity retention. The 3000W continuous power rating provides adequate capacity for whole-home backup applications when paired with appropriate inverter systems, while the 4500W peak capability handles transient loads including refrigerator compressor starting, well pump motors, and HVAC equipment cycling.
The modular parallel connection architecture enables installers to configure systems from 6 kWh single-module installations to multi-battery arrays exceeding 50 kWh for commercial applications, with the AI-assisted battery management system balancing charge states across paralleled units to prevent cell drift and capacity degradation. Self-guiding plug connectors reduce installation time and eliminate wiring errors during multi-module configurations.
Sigenergy SigenStor Product Ecosystem
SigenStor Energy Controller
Advanced hybrid inverter with integrated EMS and 4 MPPTs supporting 2:1 DC/AC ratio for oversized PV arrays, delivering 3.84-11.5kW output with seamless grid/off-grid switching and multi-source black start capability.
Sigen LoadHub
Intelligent energy management hub that automatically detects grid outages and provides seamless 0ms transition to backup power, ensuring uninterrupted operation of your essential loads.
Sigen 9kw Battery Module
High-capacity LiFePO4 battery module with 9.04kWh storage and 4.6kW continuous power, featuring advanced battery optimization that allows mixing old and new modules for easy system expansion.
Sigen EV DC Charging Module
Future-proof 25kW bi-directional DC charger that enables Vehicle-to-Home (V2H) and Vehicle-to-Grid (V2G) capabilities, delivering up to 150km of driving range per hour with direct solar charging.
