Sigenergy LoadHub Specifications
| Model | Sigen LoadHub |
| Grid Connection Type | Split Phase |
| Nominal AC Voltage | 120/240V |
| Nominal AC Frequency | 60 Hz |
| Max. Continuous Current | 200A (Grid & Main Panel) |
| Backup Switchover Time | 0 ms |
| Max. SigenStor Connections | 2 units |
| SigenStor Port Current | 48A continuous, 60A OCPD |
| Smart Load Ports | 5 ports, 64A continuous, 80A OCPD |
| Generator Port | 64A continuous, 80A OCPD, 2-wire start |
| Operating Temperature | -22°F to 131°F (-30°C to 55°C) |
| Dimensions (W × H × D) | 21 × 32 × 7 in |
| Weight | 60 lbs (27 kg) |
| Enclosure Type | Type 3R, Wall-mounted |
| Communication | Fast Ethernet (FE), RS485, Dry Contact |
| Measurement Accuracy | ≤1% (Current & Voltage) |
Complete roof mounted solar systems engineered for durability and ease of installation. Our premium kits include IronRidge XR rail systems, compatible with all our solar panels and available for all roof types, with special options for tile, flat, and metal roofs at competitive wholesale pricing.

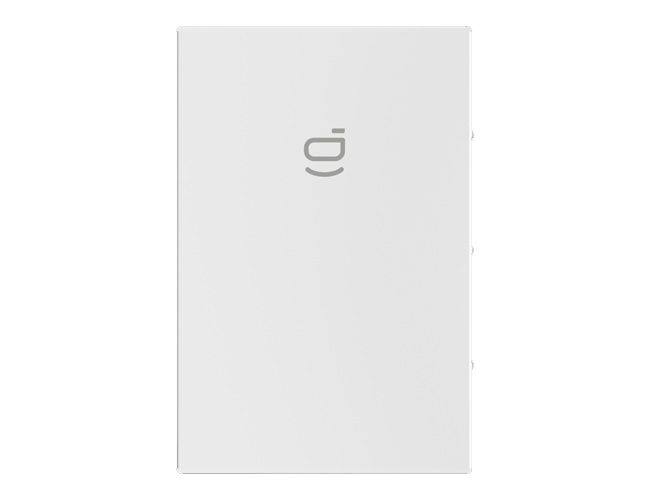

Sigenergy LoadHub 200A Backup Power System
SKU SIG-SIGEN-LOADHUB
The Sigenergy LoadHub is a professional-grade backup power management system engineered for seamless integration with SigenStor energy storage units. This 200-amp split-phase system delivers 0ms load-side disruption during grid outages through Sigenergy's patented power control algorithm, ensuring continuous power supply to critical loads without interruption. The system supports connection of up to 2 SigenStor units with 48A continuous current capacity per connection, providing scalable backup energy solutions for residential and light commercial applications. Operating on 120/240V split-phase configuration with 60Hz nominal frequency, the LoadHub manages bidirectional power flow between grid, solar, storage, and generator sources with precision current and voltage measurement accuracy of ≤1%.
TThe LoadHub incorporates advanced energy management features including 5 smart load ports with 64A continuous current capacity, generator integration with 2-wire start capability, and comprehensive system monitoring through the mySigen mobile application.
Sigen LoadHub Features
- Instantaneous Backup Transition: Patented 0ms load-side disruption technology maintains continuous power to all connected loads during grid failures, eliminating equipment shutdowns and protecting sensitive electronics
- Advanced Protection Systems: Industry-leading 350ms reverse power flow protection with bypass switch support and data-driven risk prevention mechanisms safeguard equipment and personnel
- Flexible Load Management: Five independent smart load ports with 64A continuous current capacity enable prioritized backup power distribution and remote control through mySigen App
- Ultra-Quiet Operation: Natural convection cooling maintains system noise below 25dB, suitable for residential installations without acoustic disruption
- Precision Monitoring: ≤1% current and voltage measurement accuracy with real-time data transmission via Fast Ethernet, RS485, and dry contact communication protocols
Sigenergy Sigen LoadHub Certifications
The Sigenergy LoadHub meets comprehensive North American safety, performance, and electromagnetic compatibility standards for grid-connected energy storage applications.
- UL 67 - Panelboards safety certification for electrical distribution equipment
- UL 869A - Reference standard for service equipment with distributed energy resources
- UL 1741 - Inverters, converters, controllers and interconnection system equipment for distributed energy resources
- UL 1741 PCS CRD - Power conversion system certification for distributed energy resources
- FCC Part 15 Subpart B - Federal Communications Commission electromagnetic interference standards
- ICES-003 - Canadian interference-causing equipment standard
- ANSI C63.4:2017 - American National Standard for methods of measurement of radio-noise emissions
- CA Proposition 65 - California compliance for chemical exposure warnings
Sigenergy Sigen LoadHub Technical Review
Unlike traditional automatic transfer switches that introduce 10-100ms switching delays, the LoadHub's patented power control algorithm maintains continuous voltage and frequency during grid transitions, preventing nuisance trips in sensitive electronic equipment and motor loads. The 200-amp continuous current rating across both grid and distribution panel connections accommodates whole-home backup applications, while the dual SigenStor connection capability with 48A per port supports up to 23kW of inverter capacity (2 × 11.5kW). The five independent smart load ports provide granular control over critical and non-critical loads, enabling battery runtime optimization through selective load shedding strategies. Generator integration via 2-wire start with 64A continuous rating extends backup duration for prolonged outage scenarios, with intelligent starting logic minimizing fuel consumption through battery-first operation.

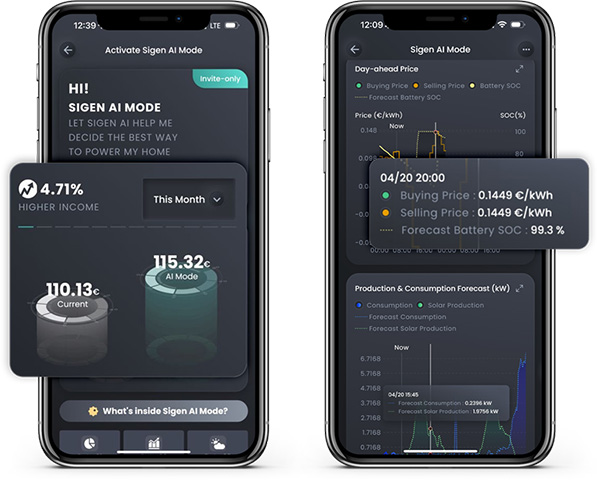

Home Energy Powered by AI with The MySigen APP
Sigenergy SigenStor Product Ecosystem
SigenStor Energy Controller
Advanced hybrid inverter with integrated EMS and 4 MPPTs supporting 2:1 DC/AC ratio for oversized PV arrays, delivering 3.84-11.5kW output with seamless grid/off-grid switching and multi-source black start capability.
Sigen 6kw Battery Module
Compact LiFePO4 battery module featuring premium 314Ah cells rated for 10,000 cycles, delivering 6.02kWh capacity with 100% depth of discharge and 3kW continuous power output.
Sigen 9kw Battery Module
High-capacity LiFePO4 battery module with 9.04kWh storage and 4.6kW continuous power, featuring advanced battery optimization that allows mixing old and new modules for easy system expansion.
Sigen EV DC Charging Module
Future-proof 25kW bi-directional DC charger that enables Vehicle-to-Home (V2H) and Vehicle-to-Grid (V2G) capabilities, delivering up to 150km of driving range per hour with direct solar charging.
