Solarland SLP045-12 45W Class 1 Division 2 Solar Panel w/ Rugged Frame

Availability: Call For Availability

Features

Solarland solar panels logo
Solarland SLP045-12 Class 1 Division 2 Solar Panel w/ Rugged Frame

  The 45 watt SLP045-12 solar panel is rugged and CSA Certified.

oil and gas pipeline in a hazardous location
  • Certified for Hazardous Environments
  • C1D2 - Class 1, Division 2
  • Certified to UL1703 and cUL1703
  • Nominal 12V DC for standard output
  • Outstanding low-light performance
  • Heavy-duty anodized frames
  • High transparent low-iron,tempered glass
  • Rugged design to withstand high wind pressure, hail and snow load
  • Aesthetic appearance
Class 1 Division 2 solar panels are commonly used in the gas and oil industry for pipeline monitoring in a hazardous areas where flammable gas, vapors or liquids may exist.

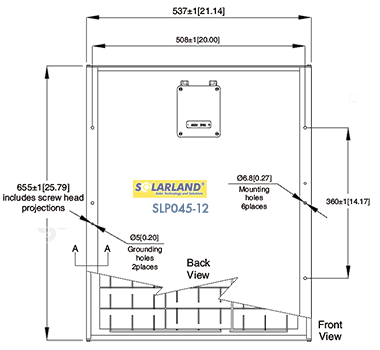

Solarland SLP045-12 Dimensions

SLP045-12 Dimensions

Class 1 Division 2 Solar Panel Applications

Class 1 Division 2 wireless pipeline monitoring
Oil pipeline wireless monitoring
C1 D2 gas pipeline cathodic protection
Gas pipeline cathodic protection


Authorized Solarland USA Reseller

Solarland SLP045-12 45 watt Class 1 Division 2 Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Solarland Class 1 Division 2 CSA C1D2
Solarland SLP045-12 (Class 1 Division 2) Solar Panel
Solarland Product Code 045011234
STC Rating 45 Watts
Voltage @ Pmax (Vmp) 17.2 Volts
Open Circuit Voltage (Voc) 21.6 Volts
Current at Pmax (Imp) 2.62 Amps
Frame Color Silver Anodized
Power Tolerance -5 / +5%
Length 25.79 in.
Width 21.14 in.
Height 1.97 in.
Weight 10.36 lbs.

Class 1 Division 2 Hazardous Location Gas Wellhead

Class 1 Division 2 Solar Systems

Great for remote oil field monitoring applications or any application requiring that C1D2 certification. These Solarland modules are also available in our complete line of packaged Class I Division 2 solar systems. Contact us for expert advice.

Manufacturer Specification Sheets

View FileSolarland SLP045-12 C1D2 Solar Panel Datasheet    Size: (691.83 KB)

Details

The Solarland SLP045-12 solar panel is
CSA Class 1 Division 2 Certified.

CSA Class 1 Division 2 Approved

Solarland SLP045-12 45 Watt Class I Division II Solar Panel Review

The rugged SLP045-12 multicrystalline solar panel is CSA Certified to UL1703 and cUL1703 and Certified for C1D2 - Class 1, Division 2 Hazardous Environments. All the models feature a 2” rugged aluminum mounting frame with a conduit-ready sealed junction box and easy to identify wiring terminals.

Class 1 Division 2 for use in hazardous locations

Class 1 Division 2 Approval means that the world's most trusted name in testing, CSA, has independently certified these solar modules as safe for use in the highest level of hazardous locations like "potentially explosive" where there is the possible presence of flammable gases, vapors or liquids.

The Solarland SLP 045-12 solar panel meets CSA's rigorous hazardous location safety standards. No matter what your location, you can safely and reliably generate power for equipment anywhere the sun shines, even in the most hazardous locations. Contact us for expert advice.
