90 KW Carport Mounted Solar System for Multi-Tenant Condominium Complex - Huntington Beach, CA

Availability: Call For Availability

Features

commercial solar system  Commercial Solar System Installation Projects

90 KW Carport Mounted Solar System for Multi-Tenant Condominium Complex - Huntington Beach, CA.

This carport mounted solar system project features 435 Trina Solar 230 watt solar panels. The PV modules were mounted using a Prosolar Rooftrac racking system utilizing Fast Jacks as the roof mounts. The systems were installed over multiple carports. The individual strings of modules were fed into SMA Sunny Boy SB7000US grid-tie inverters.

Components supplied by Solar Electric Supply include:

  • Trina TSM-230PA05 solar panels
  • Prosolar Rooftrac photovoltaic racking systems
  • Prosolar Fast Jacks
  • SMA Sunny Boy SB7000US grid-tie inverters
  • Solar Electric Supply system design and support

Contact us for expert advice and the latest low wholesale commercial solar carport system pricing.

Prosolar Trina SMA

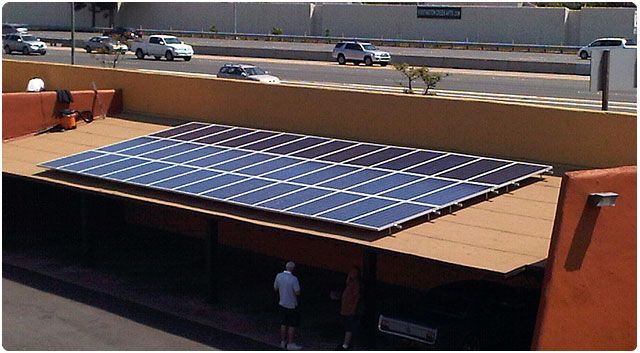

90 KW Carport Mounted Solar System

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

System Size 90 KW
Solar Panels Trina Solar TSM-230PA05
Module Mount Prosolar Rooftrac w/ Fast Jacks
Grid-Tie Inverter SMA Sunny Boy SB7000US
Panel Frame Color Silver
Panel Dimensions 64.96" x 39.05" x 1.57"

Details

This carport mounted commercial solar system includes:

Trina Solar Panel
Trina Solar
435 Trina Solar TSM-230PA05 230 Watt Solar Panels


Sunny Boy Inverter
SMA
SMA Sunny Boy SB7000US Inverters
Rooftrac
Prosolar
Professional Solar Products Rooftrac w/ Fast Jacks
AC Disconnect Square D
Heavy Duty AC Disconnect

MC Cables & Ground Lugs MC Cables &
Ilsco Ground Lugs
Wiring Diagram Solar Electric Supply
Wiring Diagram & Installation Guide

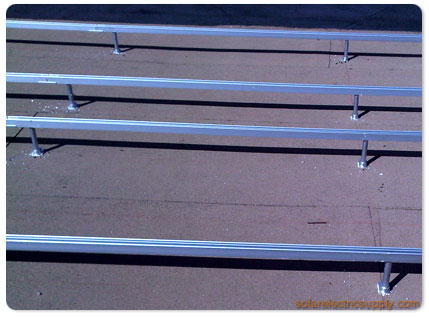

Prosolar Carport Mount
Time-tested and proven Professional Solar Products Rooftrac
roof racking system with Fast Jacks.

All of our commercial solar systems are uniquely tailored for each customer's needs.

Contact us for sales, reviews and wholesale commercial solar carport system pricing.
