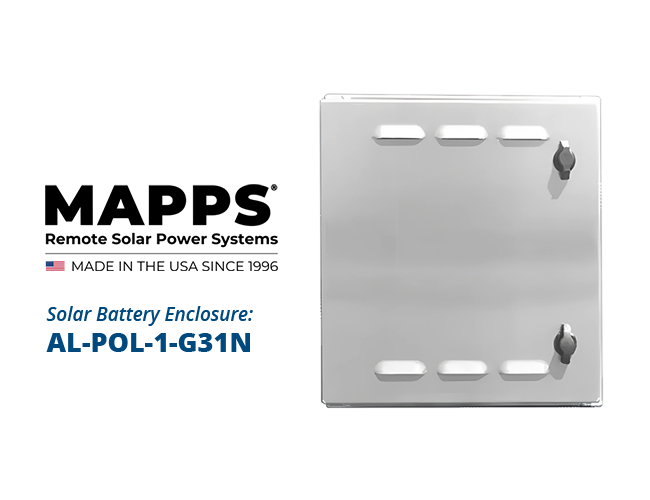

MAPPS Outdoor Solar Battery Enclosure AL-POL-1-G31N

AL-POL-1-G31N Enclosure Specifications

Model	AL-POL-1-G31N
Battery Compatibility	1x Group 31, 8G24, 8G27, 8G31 or 2x 8GU1 batteries
Optional NEMA Rating	UL NEMA 3R Certification
Construction	Milled aluminum with stainless steel hinges
Dimensions	18"H × 16"W × 10.8"D
Enclosure Weight	25 lbs
Mounting Method	Standard pole mount (up to 8" SCH40) or wall flange
Ventilation	Filtered louver vents
Security	Dual compression latches, one lockable
Origin	USA manufactured
Finish Options	Mill finish or white powder coat
Warranty	1 Year Limited

MAPPS Remote Off-Grid Solar Power Systems

MAPPS^® Remote Solar Power Systems

SES MAPPS^® Remote Solar Systems deliver reliable off-grid power for critical applications like SCADA monitoring, emergency response, and telecommunications. These complete turnkey packages combine premium solar panels, sealed batteries, and protective enclosures for years of maintenance-free operation.

Learn More about SES MAPPS^®

MAPPS AL-POL-1-G31N Pole Mounted Solar Battery Enclosure

Name: MAPPS AL-POL-1-G31N Pole Mounted Solar Battery Enclosure
SKU: AL-POL-1-G31N

SKU AL-POL-1-G31N

AL-POL-1-G31N Pole Mounted Enclosure

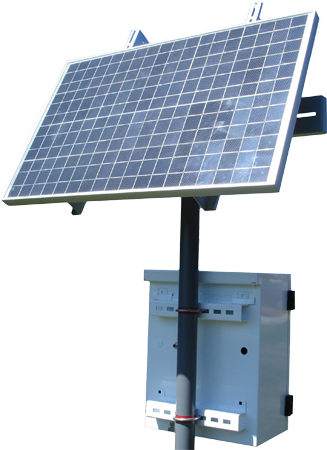

AL-POL-2-G31N NEMA 3R Battery & Control Enclosure Pole Mount

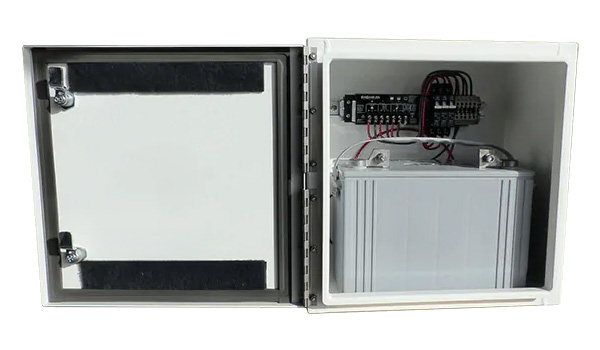

Designed for harsh outdoor environments, the MAPPS AL-POL-1-G31N Pole Mounted Battery & Control Enclosure features standard mill finish aluminum and filtered vents (white polyester powder coating available). This weather resistant battery box holds up to 2 Group 31 sealed 12 volt batteries (2x 8GU1 batteries). A charge controller may be pre-wired on a 12" DIN rail with solar/battery/load breakers. Unistrut brackets for a pole/wall mount is included. Options: SS-316 Stainless Steel, UL NEMA 3R Certification, Insulation kits.

Off-Grid Battery Powered Applications

The MAPPS^® AL-POL-1-G31N is designed for diverse remote power applications requiring reliable battery protection and system integration. These include: area security lighting, utility transmission towers, wireless smart meters, autonomous vehicle monitoring, radar cameras, GPS and UPS battery backup systems.

MAPPS^® Enclosure AL-POL-1-G31N Features

Industrial Durability: Rugged construction with milled aluminum and stainless steel components for long-term outdoor reliability
Single Battery Design: Optimized enclosure size for individual Group 31 batteries with integrated DIN rail for system components
Side-of-Pole Mounting: Unistrut brackets for side-of-pole installation up to 8" SCH40 pipe plus optional wall mounting
Enhanced Security: Dual compression latches with lockable mechanism supporting standard padlock configurations
Optimal Ventilation: Filtered louver vents maintain proper battery operating temperatures while preventing debris ingress
System Integration: Multiple conduit knockouts and pre-engineered mounting solutions for controllers and equipment

MAPPS^® AL-POL-1-G31N Options & Upgrades

Removable radio shelf available
Powder Coated Finish white or custom color

MAPPS Battery Enclosure Options & Upgrades

SunSaver or ProStar controllers pre-wired
DC to AC inverters pre-wired
DC to DC converters pre-wired
2.5" W X 3.5" H backplate for controller, customer loads
POE's pre-wired and installed on backplate
Battery insulation kit for extreme temperatures

Attachments Details

MAPPS^® AL-POL-1-G31N Solar Battery Enclosure Review

The MAPPS AL-POL-1-G31N represents a professional-grade solution for remote power applications requiring secure battery housing and system integration. The rugged, outdoor design provides weather protection while maintaining optimal battery ventilation through filtered louver systems. The dual welded strut channels and pole mounting hardware accommodate diverse installation requirements from telecommunications towers to environmental monitoring stations.

Engineering details include corrosion-resistant aluminum construction with stainless steel hinges for long-term durability in harsh outdoor environments. The integrated DIN rail system enables professional installation of charge controllers, breakers, and auxiliary equipment while multiple conduit knockouts facilitate clean cable management. The dual compression latch system provides operational convenience with security options for sensitive installations.
