800W 24VDC 530Ahr Side-of-Pole Mounted Enclosure Solar System

Availability: Call For Availability


remote off-grid battery enclosure solar system
remote off-grid solar panel systems
MAPPS off-grid enclosure solar system logo

Pole Mounted Enclosure Solar Systems

800W 24VDC 530Ahr Side-of-Pole Mounted Enclosure Solar System

2 solar panel system
Enclosure solar system designed for long life in harsh weather climates.

Reliable Weatherproof Off-Grid Solar System

This highly reliable, durable, and rugged four-battery system is designed to require minimal maintenance with a 20 year design life (with battery replacements approximately every five to seven years). Our systems are assembled and tested following strict QA/QC procedures, and are designed to IEEE Standard 1562: Guide for Array and Battery Sizing in Stand-Alone Photovoltaic (PV) Systems.

MAPPS side-of-pole mounted enclosure solar systems include components with the highest quality standards and qualify for Made in USA, Buy America and ARRA. MAPPS systems are also available with UL Listing or Class I Div 2 approval.

800W 24V Pole-Mounted Battery Enclosure Solar System

charge controller Charge control load center with pre-cut color coded wiring harness included.
custom pre-wired AC-DC charger option
We can pre-wire many options.

Solar Panel

  • High efficiency crystalline silicon
  • Meets JPL Block V durability criteria
  • Tempered glass and aluminum frame
  • Conduit ready junction box or MC 4 connectors

Gel Cell Sealed Batteries

  • Sealed maintenance-free
  • Excellent deep-cycling performance
  • Immobilized electrolyte, non-spillable
  • Transports easily and safely

System Enclosure

  • Mill finish Aluminum construction
  • Powder coated enamel white option
  • Filtered louvered vents
  • Insulation Kit for battery optional
  • Controller mounted on DIN rail with array/battery/load breakers

Balance of System Components

  • Heavy duty aluminum mounting structure
  • Controller with low voltage battery protection
  • Optional 130 and 170 MPH available
  • Color-coded, pre-cut wiring harness
  • Easy-to-follow manual/system schematics

Optional Components

  • DC to DC converters for 12, 24, 48 VDC loads
  • DC to AC inverter for 120 VAC loads
  • Radio shelf for additional load equipment
  • Pre-wired PoE Power over Ethernet injectors
solar contractors on utility transmission tower

MAPPS Battery Enclosure Solar Power System Applications

No matter what extreme environment on Earth: arctic, desert, coastal or tropical, this corrosion-resistant solar power system is ideal for your next remote off-grid solar project.

Solar battery powered examples can include:

  • Digi Transport WR31
  • VSAT data & communications
  • 4G LTE ruggedized gateways
  • Siklu Wireless Radio Mid 50vdc
  • HMI (C-More 10" display)
  • Axis Q6000-e Mid 50vdc
  • End-to-end wireless solution
  • Logic controller
  • UPS battery backup systems
  • DNGP controller
  • Contact us with your solar powered application today! OEM, Distributor, System Integrator, Government, VAR, Dealer, Contractor, MWBE, International, and Reseller discounts available.

    Call toll-free: (877) 297-0014

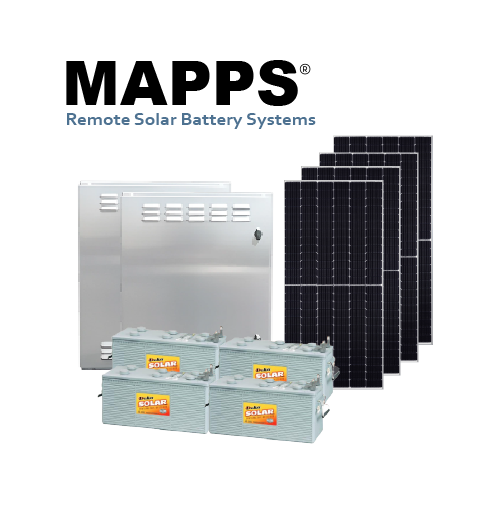

    800W 24VDC 530Ahr Side-of-Pole Mounted Enclosure Solar System

    Double click on above image to view full picture

    Zoom Out
    Zoom In


    SES MAPPS Side-of-Pole Mounted Solar System

    Model Number MAPPS-760-530-24-POLE
    Nominal System Voltage 24 VDC
    Solar PV Module

    4X SES 4200J 24 Vdc 200 Watts ea.

    Solar Module Certifications UL 1703, Class 1 Division 2, Group A, B, C, D, Class C Fire Rating
    PV Module Mount 4-Panel Side-of-Pole Mount
    Battery Type 4X Deka Solar 8G8D Gel Cell
    Battery Bank Capacity 24V 530 Ahr at 100 hour discharge rate
    Enclosure Model 2X AL-POL-2-8G8DN
    Enclosure Design NEMA 3R
    Charge Controller ProStar 30M
    Controller Certifications ETL Listed to UL 1741 & CSA C22.2 No. 107.1-01
    MAPPS System Weight w/ Batteries 938 lbs.
    Origin USA
    List Price $13,856.83
    UL Listed C US
    Optional UL Listing Available

    Manufacturer Specification Sheets

    View FileMAPPS 760-530-24 800W Pole-Mounted Battery Enclosure Solar System Datasheet    Size: (193.04 KB)
    View FileMAPPS Solar Panel System Design Guide    Size: (317.13 KB)


    MAPPS 800W 530AHr Side-of-Pole Mounted Battery Enclosure Solar System Review

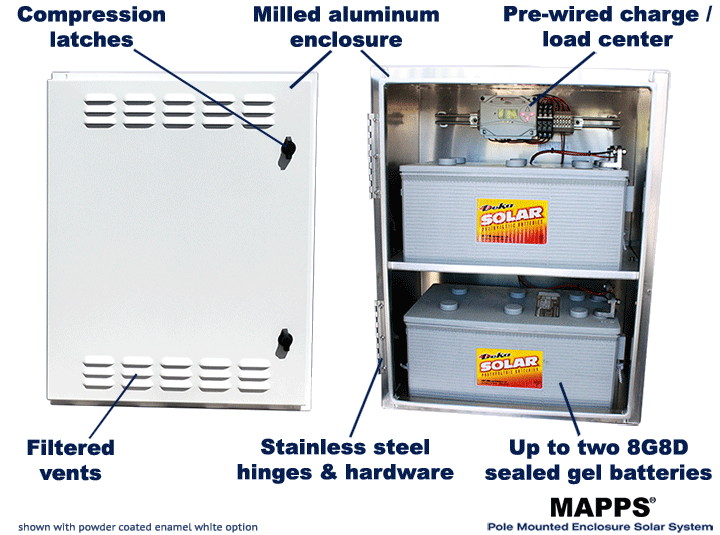

    pole mounted 2 battery enclosure review
