Model Number PVP4800
AC Nominal Power (W) 4800.0
Peak Efficiency 0.960
CEC Weighted Efficiency 0.960
Weight (lbs) 135.0
Height (in) 35.0
Width (in) 18.2
Depth (in) 8.3

PV Powered PVP4800 Inverters

  • Integrated AC and DC PV Disconnect
  • CEC Weighted Efficiency: 92%
  • Easy Installation through reduced interconnections and optimally placed knockouts
  • Factory integrated inverter and PV System Disconnect eliminates the need for extra equipment
  • Field-configurable inverter grounding schema with simple jumper selection
  • RMA program includes $400 purchase credit or $150 service reimbursement
  • Endurance tested 20 year operating life
  • Lowest part counts and fewest interconnects eliminate common failure points
  • Field-proven technology with thousands of units installed nationwide
  • Direct-to-wall surface enclosure design allows for easy access and installation
  • Single AC/DC switch visible and lockable in the OFF position
  • NEC compliant internal raceway enables flush side-by-side mounting

pv powered solar inverter manufactorer

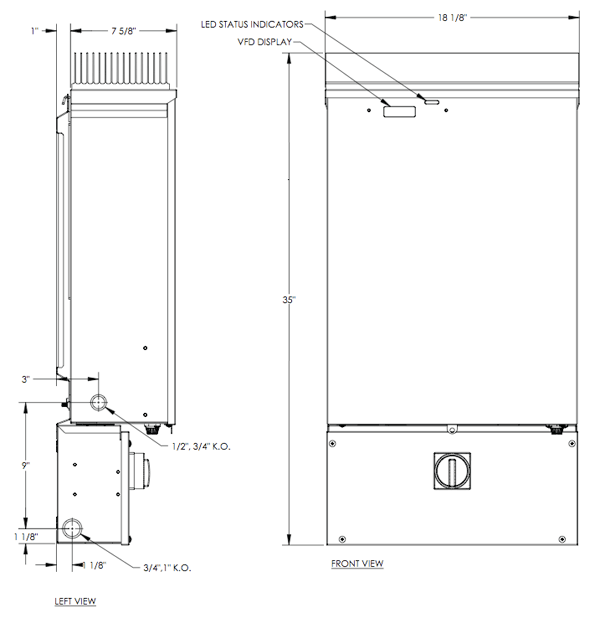

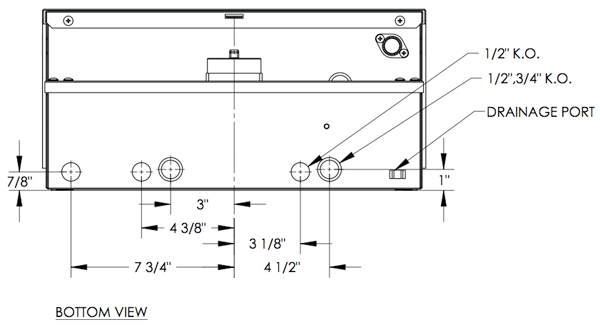

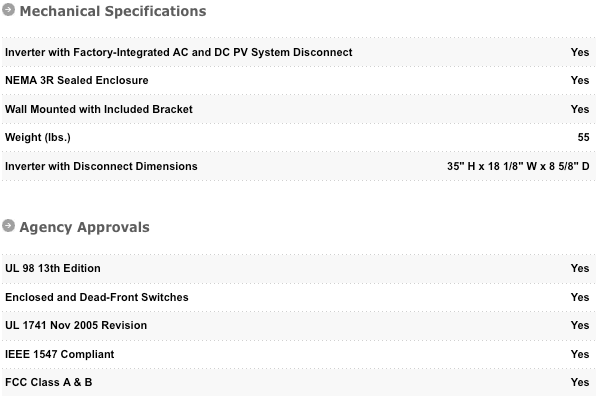

PVP4800 Inverter Electrical Specifications PVP4800 Inverter Dimensions PVP4800 Inverter Mechanical Specifications PVP4800 Inverter Dimensions-front & left view
