Solis Solar Inverters for Residential, Commercial & Energy Storage Systems
Grid-Tied Solar, Battery Storage & Backup Power Solutions
Solar Electric Supply stocks a wide range of Solis string inverters, engineered for professional solar installations across residential and commercial markets. With over a decade of proven North American field performance, Solis inverters combine advanced MPPT technology, superior efficiency ratings, and comprehensive safety systems to deliver reliable energy conversion for projects of every scale. From compact residential systems to large commercial installations, our Solis inverter portfolio provides the technical specifications and professional features demanded by today's solar integrators.
Advanced monitoring capabilities including string-level diagnostics and I-V curve scanning enable professional O&M optimization, while wide MPPT voltage ranges and high string current capacity ensure maximum energy harvest from modern high-power modules including bifacial technologies.
Choosing a Solis Inverter
Choose a grid-tied inverter when the system's primary job is converting solar power for an active utility service. Choose a hybrid inverter when the project also needs battery charging, backup output, or generator coordination.
Next, match the building's electrical service: use 208V low-voltage models for 120/208V three-phase systems and 480V models for 277/480V three-phase systems. Once topology and voltage are set, compare rated power and MPPT count.
Compare Solis Commercial Inverter Models
Swipe horizontally to compare every specification.
| Model | System type | Rated power | Grid service | MPPTs | Battery / backup | Rapid shutdown | Product page |
|---|---|---|---|---|---|---|---|
| S6-EH3P30K03-LV-APST | Hybrid | 30kW | 208V | 3 | Yes — battery + backup | Integrated APS transmitter | View model → |

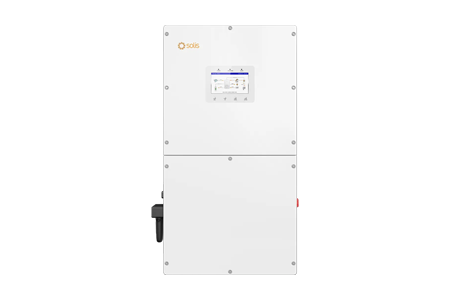

| S6-EH3P30K03-NV-APST | Hybrid | 30kW | 480V | 3 | Yes — battery + backup | Integrated APS transmitter | View model → |
| S6-EH3P60K04-NV-APST | Hybrid | 60kW | 480V | 4 | Yes — battery + backup | Integrated APS transmitter | View model → |

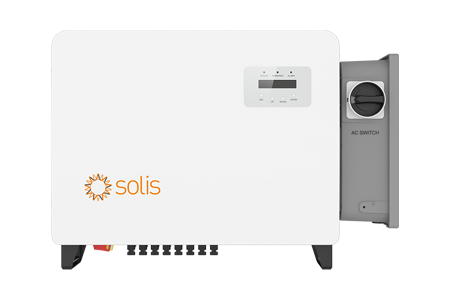

| S6-GC30K-LV-US | Grid-tied | 30kW | 208V | 3 | No | APST / RSS / NEPT options | View model → |

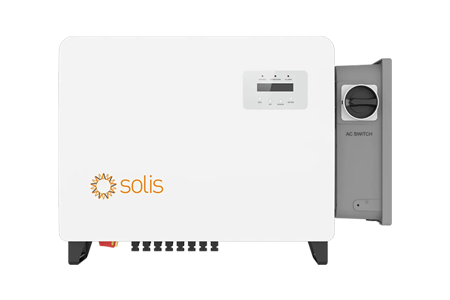

| S6-GC36K-US-APST | Grid-tied | 36kW | 480V | 3 | No | Integrated APS transmitter | View model → |
| S6-GC40K-US | Grid-tied | 40kW | 480V | 3 | No | APST / RSS / NEPT options | View model → |
| S6-GC60K-US | Grid-tied | 60kW | 480V | 4 | No | APST / RSS / NEPT options | View model → |
| S5-GC100K-US | Grid-tied | 100kW | 480V | 10 | No | APST / RSS / NEPT options | View model → |
| S5-GC125K-US | Grid-tied | 125kW | 480V | 10 | No | APST / RSS / NEPT options | View model → |

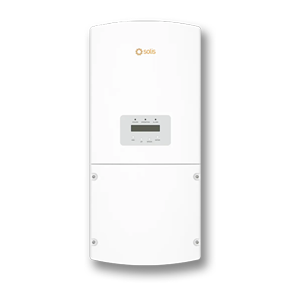

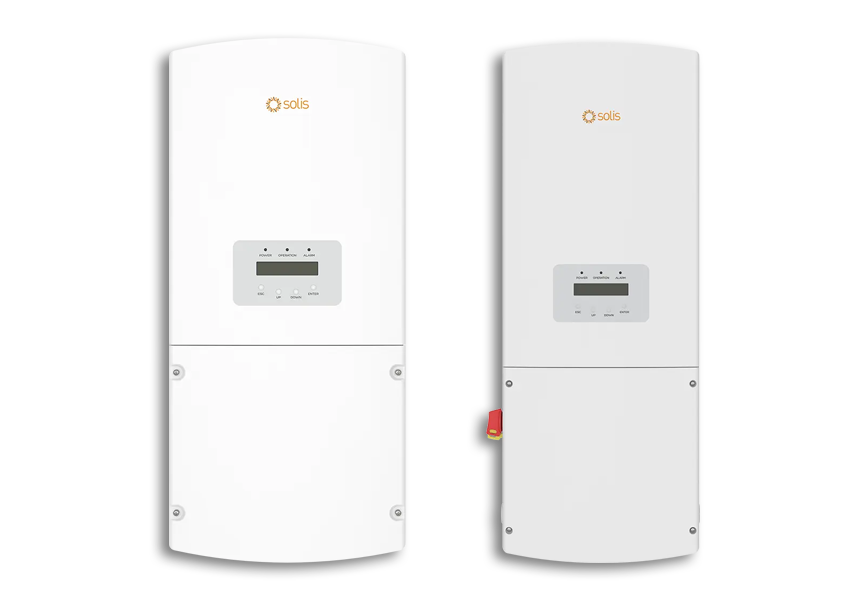

Solis 4G Single-Phase Residential Inverters
Our Solis residential inverter lineup features single-phase models from 7.6kW to 10kW, engineered specifically for residential and small commercial applications. These transformerless inverters deliver up to 97.8% efficiency with up to four independent MPPT channels, 14A string current capability, and integrated AFCI protection for enhanced safety.
Datasheet Downloads
Solis-1P(6-10)K-4G-USHigh-Efficiency Performance
97.8% maximum efficiency with 97.5% CEC efficiency delivers optimal energy conversion and reduced system losses for maximum homeowner savings.
Advanced MPPT Technology
Four independent MPPT channels with 100–500V range enable complex array configurations and effective shadow mitigation on residential rooftops.
Integrated Safety Systems
Built-in AFCI helps reduce DC arc-fault risk, while rapid shutdown is provided through compatible APS or Tigo MLRSD devices selected for the inverter configuration.
Rapid Shutdown Compliance
UL3741 certified with compatible APS and Tigo MLRSD devices enables cost-effective installations with simplified wiring requirements.
Module Compatibility
14A string current capacity supports high-power and bifacial PV modules for increased power density and design flexibility.
Professional Monitoring
RS485 communication with optional cellular/WiFi connectivity enables remote monitoring and module-level system diagnostics.
Climate Resilient Design
-25°C to 60°C operating range with natural cooling ensures reliable performance across diverse residential installation environments.
Streamlined Installation
Compact design with multiple conduit knockouts and terminal options simplifies residential installation procedures and reduces labor costs.
Residential Solis 4G Single Phase Inverter Models
Solis S6 Three-Phase Commercial Hybrid Inverters
The Solis S6 commercial hybrid lineup combines solar generation, high-voltage battery storage, backup power, and generator integration for three-phase commercial facilities. Choose the 30kW low-voltage model for 208V services, or the 30kW and 60kW high-voltage models for 480V projects. PV input is rated at 21A per string and 42A per MPPT. Each APST configuration includes an integrated APsmart rapid shutdown transmitter and a 10-year standard warranty.
Solar + Storage Integration
Two independent high-voltage battery ports support flexible commercial storage capacity and future system expansion.
208V and 480V Options
Purpose-built 30kW 208V and 30kW to 60kW 480V models match common three-phase commercial service voltages.
Fast Backup Transfer
Sub-10 ms on-grid and off-grid transfer helps keep supported critical loads operating through utility interruptions.
Generator Ready
A dedicated generator interface coordinates solar, storage, grid, and generator power in one commercial energy platform.
Solis S6 Commercial Hybrid Inverter Models

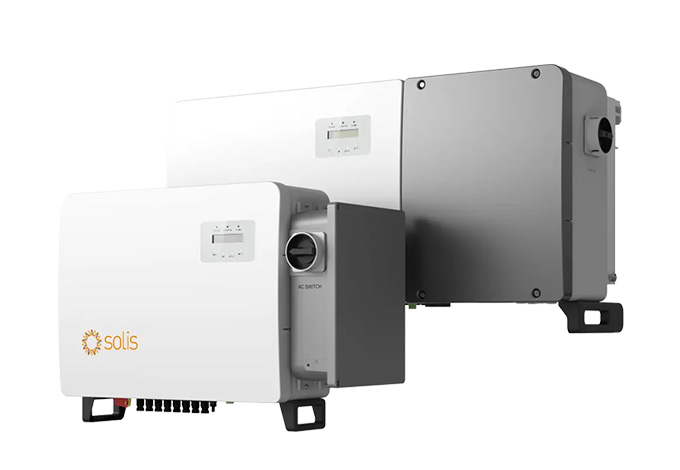

Commercial Grid-Tied Inverters
Solis S6 three-phase grid-tied inverters serve commercial rooftop, carport, and ground-mount projects from 30kW to 60kW. The lineup includes a 30kW low-voltage model for 208V services plus 36kW, 40kW, and 60kW models for 480V systems, with up to four MPPTs, 20A string current capability, and up to 98.8% maximum efficiency.
Commercial Power Range
Power ratings from 30kW to 60kW support commercial rooftops, solar carports, and ground-mount PV systems.
Advanced MPPT Design
Three or four independent MPPT channels with a wide 180V–1000V range support complex array configurations and orientations.
Peak Efficiency Performance
Up to 98.8% maximum efficiency with 98.3% CEC efficiency ensures minimal energy losses and maximum commercial ROI over system lifetime.
Industrial Grade Protection
Type 4X ingress protection with C5 anti-corrosion level provides long-term reliability in harsh commercial outdoor environments.
Streamlined Installation
Integrated DC and AC disconnects with separable AC wiring boxes streamline large commercial installation procedures and code compliance.
Advanced Grid Support
External power control interface with zero output power control capability supports utility grid stabilization and demand response requirements.
High Current Capability
String current ratings up to 20A accommodate high-power commercial modules and bifacial technologies for maximum power density.
Enterprise Monitoring
String-level monitoring, I-V curve scanning, and comprehensive communication protocols optimize large-scale commercial system performance and O&M operations.
Solis S6 Three-Phase Commercial Grid-Tied Inverter Models

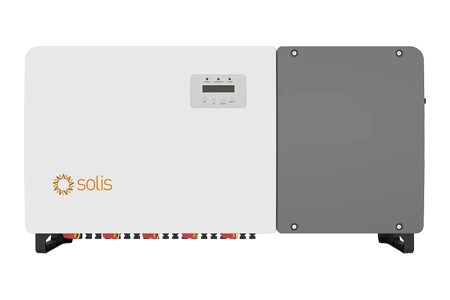

Solis S5 High-Capacity Commercial Grid-Tied Inverters
The Solis S5 high-capacity commercial lineup covers 75kW to 125kW three-phase configurations for 480V systems. Solar Electric Supply currently offers the 100kW and 125kW models for large commercial rooftops, carports, and ground-mount projects.
Datasheet Downloads
S5-GC(75-125)K-USHigh-Capacity Commercial Power
The 75kW to 125kW family supports larger commercial rooftops, solar carports, and ground-mount PV projects.
Multi-MPPT Flexibility
Eight to ten independent MPPT channels support large arrays with multiple roof planes, orientations, or string layouts.
Commercial Efficiency
Up to 98.8% maximum efficiency and 98.3% CEC efficiency help reduce conversion losses across high-output systems.
Outdoor-Ready Protection
Type 4X enclosures, integrated AFCI protection, and remote monitoring support demanding commercial installations.
Solis S5 Commercial Grid-Tied Inverter Models
Different commercial solar panels, PV mounts, storage, & inverter systems available at low wholesale prices
From custom solar designs to complete pre-engineered systems, Solar Electric Supply delivers fast service, expert guidance, and unbeatable wholesale pricing you can trust.
Cost-effective complete or custom solar packages for commercial sloped-roof buildings. Includes name-brand panels, premium inverters, and turnkey mounting solutions.

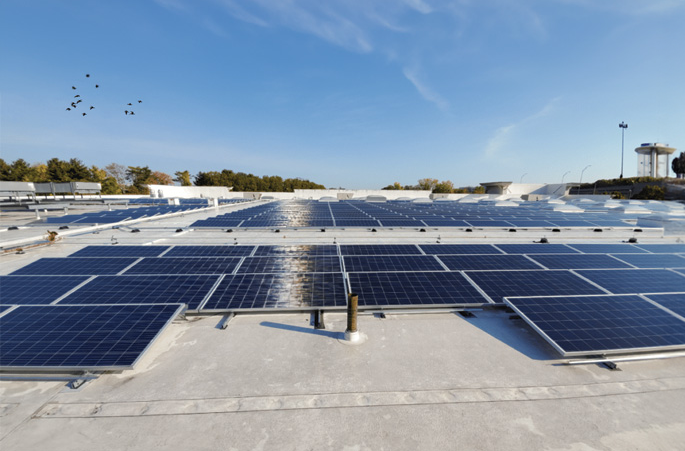

We offer the highest quality solar panels, grid-tie inverters, and system components at a low wholesale price for your next commercial flat roof solar system project.
