49 KW Sharp Solar Metal Roof Tile Trac Mount Solar System Project, Gilroy, California

Availability: Call For Availability

Features

commercial solar system  Commercial Solar System Installation Projects

49 KW Sharp Solar System Project on Metal Roof - Overland Parts, Gilroy, CA

Two different systems were used for this project for Overland Parts in Gilroy, California. The first composed of 120 REC 235PE solar panels w/ 2 Fronius IG Plus 11.4 inverters. The second system composed of 100 Sharp ND-208 solar panels w/ 3 SMA SB7000US grid-tie inverters.

The solar panels for both systems were mounted to a metal roof using the Tile Trac mounting system by Professional Solar Products. A tilt-up kit was installed to each array for the optimum angle. This allows for the maximum solar energy harvest. Installed by Wenholz Electric.

Components supplied by Solar Electric Supply include:

  • Sharp and REC solar panels
  • Fronius and SMA Sunny Boy inverters
  • Tile Trac roof mounting system with tilt-up kit by Professional Solar Products
  • Solar Electric Supply system design and support

Contact us for expert advice and the latest low wholesale metal-roof solar system pricing. Government and educational discounts available.


Sharp

REC

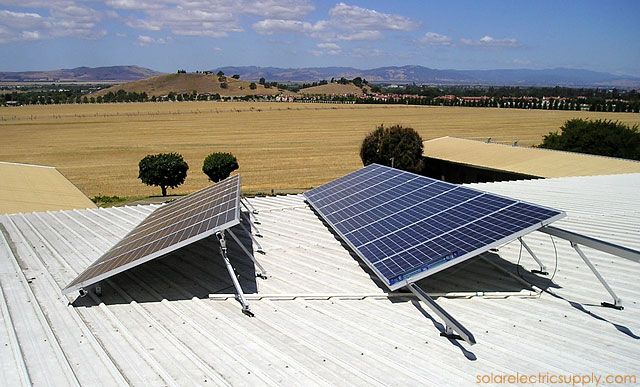

Sharp Solar Panel System on Metal Roof with Tile Trac

Double click on above image to view full picture

Zoom Out
Zoom In

Specifications

Solar Panels Sharp ND-208U1 and REC 235PE
Inverters Fronius IG + 11.4 & SMA SB7000
Module Mount Prosolar Tile Trac / Tilt-Up Kit
Panel Frame Color Silver


 Reviews for Solar Electric Supply:

  "I have purchased several systems from Solar Electric Supply. In every instance they go way above just supplying solar panels and inverters. They know all about the different mounting hardware, permitting requirements, tie-in configurations and mounting options. They save me time which increases my bottom line plain and simple."

- Bill Wenholz, Wenholz Electric

Details

This metal-roof mounted solar system includes:

TSM PV Module
Sharp
Sharp ND-208U1 Solar Panels


REC Solar module
REC
REC 235PE Solar Panels

Fronius IG Plus Inverter
Fronius
Fronius IG Plus 11.4 Grid-Tie Inverters
Sunny Boy inverter
SMA
Sunny Boy SB7000-US Grid-Tie Inverters

Tile Trac Professional Solar
Tile Trac

Tilt-up Kit
Prosolar
Tilt-Up Kit

Wiring Diagram Solar Electric Supply
Wiring Diagram & Installation Guide

Tile Trac Solar System
Tilted at the optimum angle for maximum solar exposure.




All of our commercial solar systems are uniquely tailored for each customer's needs.

Contact us for sales, reviews and wholesale commercial metal-roof solar system pricing.
