Prosolar Tilt-up Kit

The Prosolar Rooftrac Tilt Up Kit allows solar arrays to be tilted to an optimum angle and is a simple to add accessory for RoofTrac based deployments.

Tilt-up Kit Features: Works with most solar modules Compatible with Rooftrac Aligns solar arrays to optimal angle for best possible power output Simple to install to Rooftrac based systems

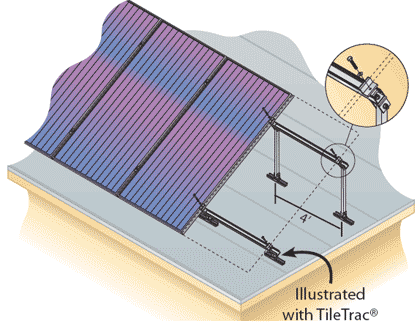

Schematic of Rooftrac Tilt-up System

Engineering:

50 lbs per square ft. (Selected modules only). 125 MPH approximate wind load.

Modules supported by the tilt-up kit:

BP Solar
Kyocera
Sharp
SolarWorld

Tilt-up Kit Installation Guide
