S-5! ProteaBracket

The ProteaBracket clamp mount is a solid solution for solar panel rails or the S-5-PV Kit on trapezoidal sheet metal roofs.
ProteaBracket logo

S-5 ProteaBracket for Solar Panel Mounting on Trapezoidal Metal Roofs

ProteaBracketâ„¢ when combined with solar panel mounting rails or the S-5 PV Kit, is a versatile PV mounting solution for exposed-fastened metal roofs. It fits most trapezoidal sheet metal roof profiles with and without intermediate insulation. It features an adjustable attachment base to accommodate varying widths and heights. It is a solar panel mounting solution that is both economical, easy to use and spares you the hassle of cold-bridging.

ProteaBracket with S-5-PV Kit
Combined with the S-5-PV Kit, the ProteaBracket is an integrally grounded solar panel mounting solution.

Leak-Proof EPDM Rubber Bond

The ProteaBracket comes with a factory-applied EPDM adhesive rubber sealant on the base that ensures quick weather-proof installation. There are no messy sealants to apply and no chance for leaks. The factory applied adhesive rubber sealant ensures quick installation and a weather-proof fit.

Superior Holding Strength

The ProteaBracketâ„¢ is constructed of structural A2 stainless steel bimetal. S-5!'s holding strength is unmatched in the industry. This rugged attachment bracket is compatible with most common metal roofing materials. All four pre-punched holes must be used to achieve tested strength. Mounting hardware is supplied for each ProteaBracket.

ProteaBracket Installation Review

The ProteaBracket is mounted directly onto the crown of the roofing panel, straddling the profile. No surface preparation is necessary.

  1. Wipe away excess oil and debris.
  2. Carefully align the bracket.
  3. Peel adhesive backing and apply bracket to the metal roofing panel.
  4. Securely fasten the bracket through the pre-punched holes using the appropriate S-5! fasteners or Bulb-tite rivets for the supporting roof material.

ProteaBracket Installation Steps

Contact us toll-free: (877) 297-0014 for design assistance and wholesale S-5! ProteaBracket prices.


Learn more about S-5! Solar PV Mounting Systems

ProteaBracket with S-5-PV Kit

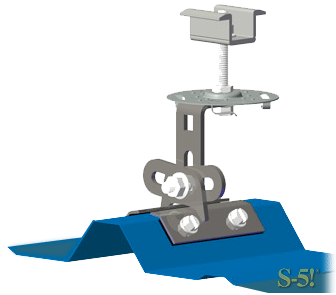

S-5-PV Kit demonstrated with a ProteaBracket on a trapezoidal profile
ProteaBracket with S-5-PV Kit

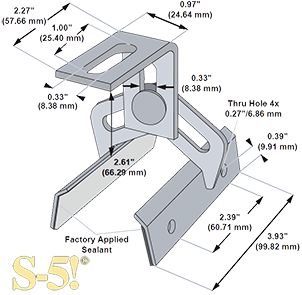

S-5 ProteaBracket Dimensions

ProteaBracket info S-5! ProteaBracket Information

ProteaBracket Installation Instructions S-5! ProteaBracket Installation Instructions


For design assistance and low ProteaBracket wholesale prices, contact us toll-free: (877) 297-0014.
