SnapNrack Flashed L Foot Kit

SnapNRack

SnapNrack Series 100 Flashed L Foot Kit

Flashed L-Foot base

SnapNrack Series 100 Flashed L Foot Kit is an innovative solution to provide a long lasting, watertight seal over the life of the system. The Flashed L Foot provides a fully flashed roof fastener for attachment to composition roof with no required cutting of shingles. The L Foot is engineered for maximum adjustability for a clean, level installation of sloped composition roof solar panel systems.

SnapNrack Flashed L-Foot Features

  • Slotted attachment provides 1” vertical adjustability for array leveling
  • 1” spacers available for increased elevation adjustability
  • Clear or black anodized aluminum components. Both are available with black galvanized steel or aluminum flashing.
  • No cutting of shingles
Flashed L-Foot Kit Technical Data
Materials · 6000 Series aluminum L foot & base
· Stainless steel hardware
· Galvanized steel or aluminum flashing w/ black all weather coating
Material Finish Clear and black anodized aluminum
Weight 1.3 lbs
Design Uplift Load 350 lbs uplift
Design Ultimate Load 1,000 lbs uplift
Dimensions 12.0" x 12.0" x 3.4"
Warranty 10 year limited product warranty; 5 year limited finish warranty
Datasheet

Snapnrack info SnapNrack Flashed L-Foot Kit Brochure

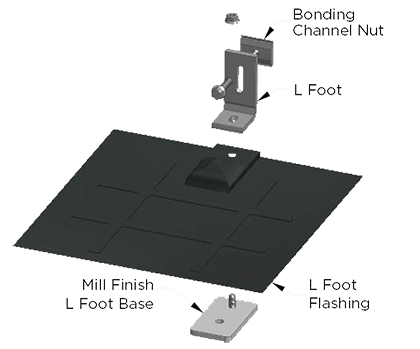

Flashing base and bonding channel nut



Contact us toll-free: (877) 297-0014

Learn more about SnapNrack solar panel roof mounts.



SnapNrack Series 100 roof mount website for videos and more information.

SnapNrack Flashed L-Foot review

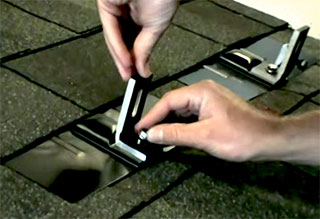

The simple, yet effective Flashed L-Foot base is mounted under existing shingles. No cutting of the shingles is required.

Flashed L-Foot kit features
