SnapNrack Standing Seam System

Series 500 standing seam metal clamp mount solar panel system

SnapNrack Standing Seam System

Attach solar panels and rails directly to standing seam metal roofs without drilling.

The SnapNrack line of roof solar mounting systems is designed to reduce total installation costs. This standing seam metal roof solar panel mounting system features technical innovations proven on more than 350 MW of solar projects to simplify installation and reduce costs.

Metal Roof Arrays Simplified

The SnapNrack Series 500 Metal Roof Seam Clamp is a cost-optimized PV Mounting System for both residential and commercial metal roof mount installations. The system was designed to allow the attachment of PV modules or PV mounting rails directly to a commercial grade standing seam metal roof without penetrating the metal or collapsing the ridge in the metal roof material. The design is simple and low cost, but very effective. The clamp is made from high tensile strength aluminum and has two models that will work with multiple metal roof designs including single and double rolled seams or similar designs. This allows a completely engineered system that is simple, robust, and efficient with the lowest possible total installed cost.

wide base
WIDE BASE
standard base
STANDARD BASE
  • Attaches to the roof seam without penetrations
  • Tested on numerous roofing materials
  • Utilizes a single bolt to secure the clamp
  • Made from 6005 extruded aluminum
  • Cam design applies pressure evenly on seam
  • Clamps use 5/16” -18 bolt for clamping and mounting
  • 10 Year Material and Workmanship Warranty

Design a Seam Clamp System in 4 Simple Steps:

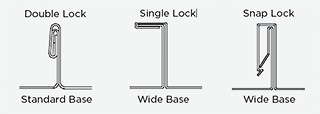

  1. Choose appropriate Clamp (By Profile or Guide).
    metal seam clamp type profile
  2. Determine mounting configuration with the SnapNrack Metal Roof Seam Clamp Guide.
  3. Define load to calculate clamp quantity and spacing.
  4. Contact us for wholesale pricing and expert advice.

standard base
standard base
standard base
Datasheet & Clamp Guide

Snapnrack info SnapNrack Standing Seam System Tech Brief & Clamp Guide


Metal roof commercial building solar system
We specialize in commercial solar systems. Contact us for a quotation.
Series 500 clamp installed on rail
The Series 500 Standing Seam System is designed to last the life of the solar system.


Contact us toll-free at (877)297-0014 for low wholesale SnapNrack Series 500 standing metal seam roof clamp mount pricing and expert reviews.
